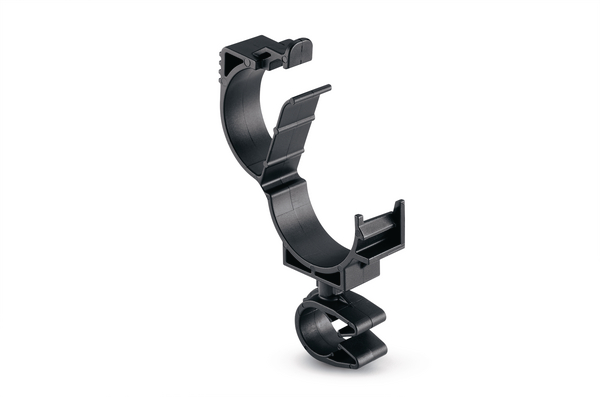

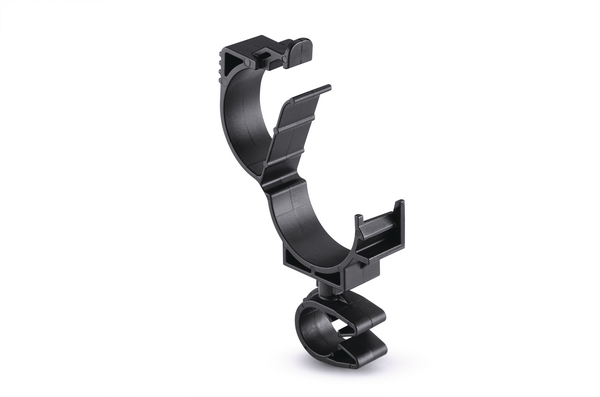

Cable clip with pipe/tube holder, Dmin=10.5mm, Dmax=13.8mm, nom∅=12.0 mm, nom∅2=20.0 mm - 25.0 mm
Art.-No. 156-01912
| MOC12FLOC20-25-PA66HIRHSUV-BK
|
Details
Attach to Ø | 10.5 - 13.8, 20.0 - 25.0 |
Bundle Diameter Nom. (ND) | 12.0 mm |
Bundle Diameter Nom. 2 (ND2) | 20.0 mm - 25.0 mm |
Bundle Diameter max (metric) | 13.8mm |
Bundle ∅ 2 max. | 25.0mm |
Bundle ∅ 2 min. | 20.0mm |
Bundle ∅ min. | 10.5mm |
Depth (D) | 12.0mm |
Height (H) | 38.9mm |
Height (H2) | 22.10mm |
Length (L) | 57.10mm |
Length (L2) | 31.9mm |
