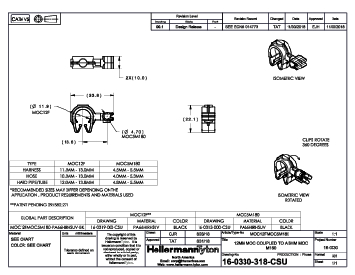

Cable clip with pipe/tube holder, Dmin=10.5mm, Dmax=13.8mm, nom∅=12.0 mm, nom∅2=5.0 mm
Art.-No. 156-02079 | MOC12FMOC5M180-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC12FMOC5M180-PA66HIRHSUV-BK
    Pack Content 2000
    Package Content packed in carton
    Type MOC12FMOC5M180
    Variant Clip to Clip Transverse
    Bundle Diameter Nom. (ND) 12.0 mm
    Bundle Diameter Nom. 2 (ND2) 5.0 mm
    Bundle Diameter max (metric) 13.8mm
    Bundle ∅ 2 max. 5.5mm
    Bundle ∅ 2 min. 4.0mm
    Bundle ∅ min. 10.5mm
    Depth (D) 10.0mm
    Height (H) 22.1mm
    Length (L) 33.81mm
    Length (L2) 18.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026715957
    Packaging 1 - Weight (kg) 201.88kg
    Packaging 3 - Height (m) 0.136525m
    Packaging 3 - Length (m) 0.5191125m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0217m³
    Packaging 3 - Weight (kg) 4.5kg
    Packaging 3 - Width (m) 0.3063875m
    Packaging 4 - Qty 112000
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
