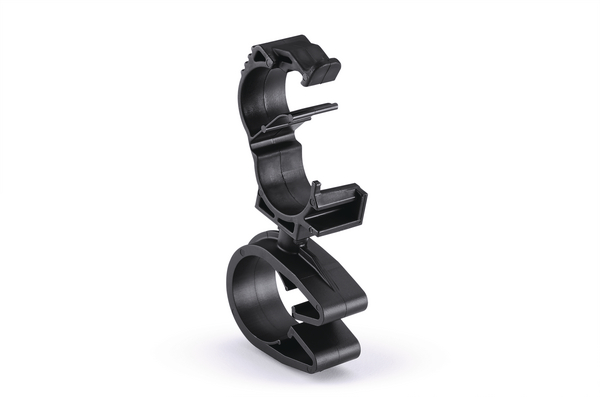

Cable clip with pipe/tube holder, Dmin=20.0mm, Dmax=25.0mm, nom∅=22.0 mm, nom∅2=10.0 mm - 14.0 mm
Art.-No. 156-01871 | MOC22FLOC10-14-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC22FLOC10-14-PA66HIRHSUV-BK
    Pack Content 1000pcs.
    Package Content packed in carton
    Type MOC22FLOC10-14
    Variant Clip to Clamp
    Bundle Diameter Nom. (ND) 22.0 mm
    Bundle Diameter Nom. 2 (ND2) 10.0 mm - 14.0 mm
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 2 max. 14.0mm
    Bundle ∅ 2 min. 10.0mm
    Bundle ∅ min. 20.0mm
    Depth (D) 12.0mm
    Height (H) 36.5mm
    Height (H2) 36.5mm
    Length (L) 56.20mm
    Length (L2) 32.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026715650
    Packaging 1 - Weight (kg) 206.34kg
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
