Cable clip with pipe/tube holder, Dmin=20.0mm, Dmax=25.0mm, nom⌀=22.0 mm, nom⌀2=22.0 mm
Art.-No. 156-02490 | MOC22FMOC22M-PA66HIRHSUV-BK |

Copied

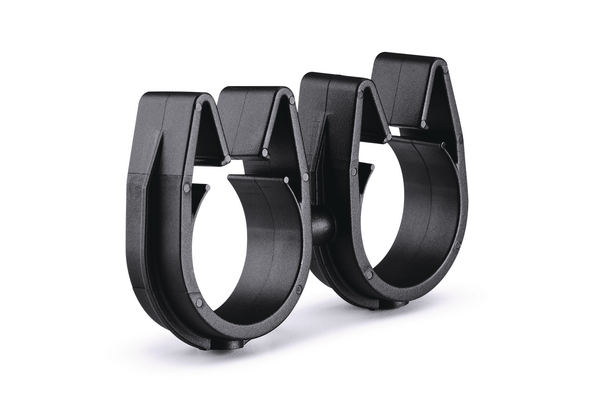

A rotatable dual routing clip that keeps two routings secured and separated.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC22FMOC22M-PA66HIRHSUV-BK
    Pack Content 1500
    Package Content packed in pack
    Type MOC22FMOC22M
    Variant Clip to Clip
    ⌀ (D2) 22.1mm
    Bundle ⌀ 2 max. 25.0mm
    Bundle ⌀ 2 min. 20.0mm
    Bundle ⌀ max. 25.0mm
    Bundle ⌀ min. 20.0mm
    Bundle Diameter Nom. (ND) 22.0 mm
    Bundle Diameter Nom. 2 (ND2) 22.0 mm
    Depth (D) 12.0mm
    Diameter (D) 22.1mm
    Height (H) 36.5mm
    Height (H2) 36.5mm
    Length (L) 65.4mm
    Length (L2) 34.9mm
    Width (W) 12.0mm
    Width (W2) 12.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026663234
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 207.34kg
    Packaging 3 - Height (m) 0.35242499999999995m
    Packaging 3 - Length (m) 0.5715m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Weight (kg) 11.06kg
    Packaging 3 - Width (m) 0.34925m
    UNSPSC Key 39121702
