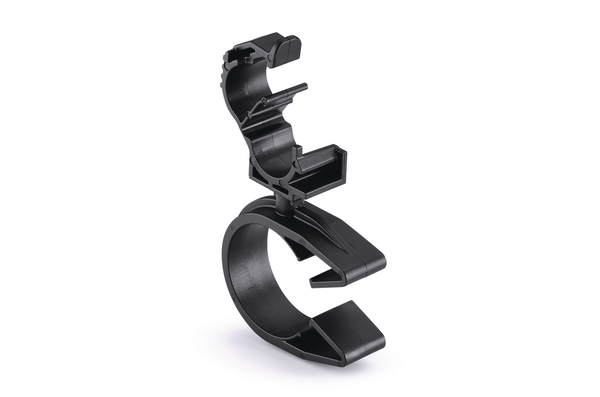

Cable clip with pipe/tube holder, Dmin=23.0mm, Dmax=29.0mm, nom⌀=26.0 mm, nom⌀2=5.0 mm - 9.0 mm
Art.-No. 156-01849 | MOC26FLOC5-9-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC26FLOC5-9-PA66HIRHSUV-BK
    Pack Content 1000pcs.
    Package Content packed in pack
    Type MOC26FLOC5-9
    Variant Clip to Clamp
    Bundle ⌀ 2 max. 9.0mm
    Bundle ⌀ 2 min. 5.0mm
    Bundle ⌀ max. 29.0mm
    Bundle ⌀ min. 23.0mm
    Bundle Diameter Nom. (ND) 26.0 mm
    Bundle Diameter Nom. 2 (ND2) 5.0 mm - 9.0 mm
    Depth (D) 12.0mm
    Height (H) 41.0mm
    Height (H2) 41.0mm
    Length (L) 59.10mm
    Length (L2) 32.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026715414
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 206.45kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Width (m) 0.39688m
    UNSPSC Key 39121705
