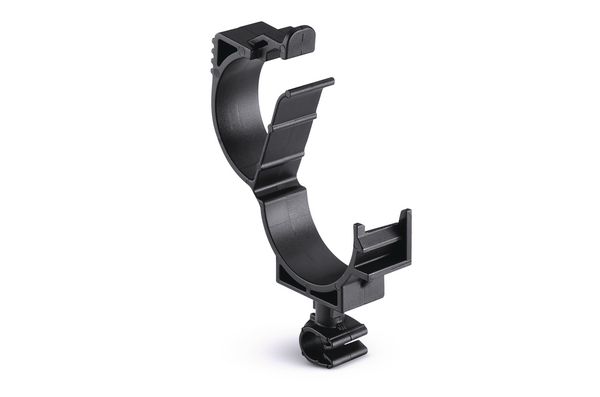

Cable clip with pipe/tube holder, Dmin=5.5mm, Dmax=6.8mm, nom⌀=6.0 mm, nom⌀2=20.0 mm - 25.0 mm
Art.-No. 156-01902 | MOC6FLOC20-25-PA66HIRHSUV-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Key product features removable, for multiple routing
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC6FLOC20-25-PA66HIRHSUV-BK
    Pack Content 1000pcs.
    Package Content packed in carton
    Type MOC6FLOC20-25
    Variant Clip to Clamp
    Attach to ⌀ 5.5 - 6.8, 20.0 - 25.0
    Bundle ⌀ 2 max. 25.0mm
    Bundle ⌀ 2 min. 20.0mm
    Bundle ⌀ min. 5.5mm
    Bundle Diameter Nom. (ND) 6.0 mm
    Bundle Diameter Nom. 2 (ND2) 20.0 mm - 25.0 mm
    Bundle Diameter max (metric) 6.8mm
    Depth (D) 12.0mm
    Height (H) 38.9mm
    Height (H2) 12.0mm
    Length (L) 50.20mm
    Length (L2) 28.8mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026715803
    Packaging 1 - Weight (kg) 204.43kg
    Packaging 3 - Height (m) 0.2047875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 1000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Width (m) 0.314325m
    Packaging 4 - Qty 40000
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
