29/04/2025

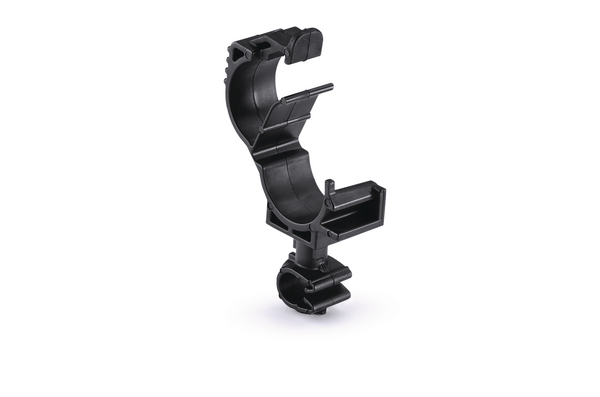

Cable clip with pipe/tube holder, Dmin=6.0mm, Dmax=8.0mm, nom⌀=7.0 mm, nom⌀2=10.0 mm - 14.0 mm
Art.-No. 156-01855 | MOC7FLOC10-14-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC7FLOC10-14-PA66HIRHSUV-BK
    Pack Content 2500
    Package Content packed in pack
    Type MOC7FLOC10-14
    Variant Clip to Clamp
    Bundle ⌀ 2 max. 14.0mm
    Bundle ⌀ 2 min. 10.0mm
    Bundle ⌀ max. 8.0mm
    Bundle ⌀ min. 6.0mm
    Bundle Diameter Nom. (ND) 7.0 mm
    Bundle Diameter Nom. 2 (ND2) 10.0 mm - 14.0 mm
    Depth (D) 12.0mm
    Height (H) 27.4mm
    Height (H2) 13.4mm
    Length (L) 41.30mm
    Length (L2) 23.9mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026715445
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 203.43kg
    UNSPSC Key 39121705
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
