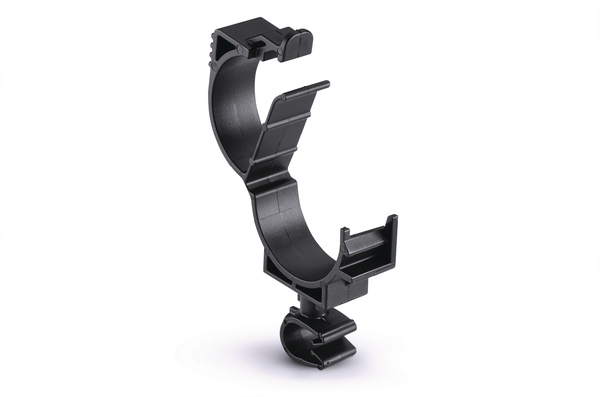

Cable clip with pipe/tube holder, Dmin=20.0mm, Dmax=25.0mm, nom∅=8.0 mm, nom∅2=20.0 mm - 25.0 mm
Art.-No. 156-01614
| MOC8FLOC20-25-PA66HIRHSUV-BK
|
Details
| Colour | Black (BK) |
| Key product features | removable, for multiple routing, rotatable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | MOC8FLOC20-25-PA66HIRHSUV-BK |
| Pack Content | 1000pcs. |
| Package Content packed in | carton |
| Type | MOC8FLOC20-25 |
| Variant | Clip to Clamp |
| Attach to Ø | 20.0 - 25.0, 7.0 - 9.0 |
| Bundle Diameter Nom. (ND) | 8.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 20.0 mm - 25.0 mm |
| Bundle Diameter max (metric) | 25.0mm |
| Bundle ∅ 2 max. | 9.0mm |
| Bundle ∅ 2 min. | 7.0mm |
| Bundle ∅ min. | 20.0mm |
| Depth (D) | 12.0mm |
| Height (H) | 38.9mm |
| Height (H2) | 15.20mm |
| Length (L) | 52.4mm |
| Length (L2) | 29.7mm |
| Width (W) | 12.00mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
