25/12/2024

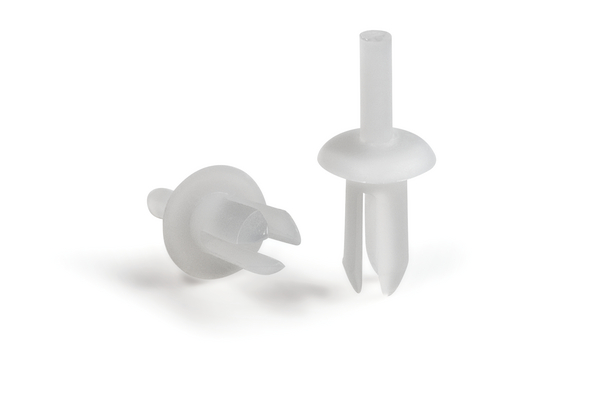

Plastic rivet fastener, ∅4.7 - 4.9 mm, T=2.5 - 7.0mm, natural 100pcs.
Art.-No. 241-00003 | RAT1-PA66-NA |  Details

    • Suitable for joining two or more plates
    • Self-locking fixing
    • Simple and easy application
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Indicated to make the union between two or more plates, it has a fast-self-locking fastening system. The application is simple and easy, put the rivet in the hole of the plate and press the superior guide until obtaining the final locking.
    Colour Natural (NA)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION RAT1-PA66-NA
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family RAT-1 Series
    Product Group Self-locking Rivets
    Type RAT1

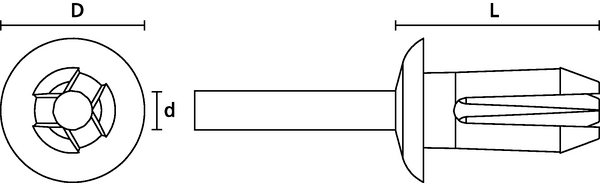

    Diameter (D) 9.0mm
    Length (L) 12.8mm
    Panel Thickness max. 2.5 - 7.0mm
    for Hole ∅ (FH) 4.7 - 4.9 mm
    for Panel Thickness min - max 2.5 - 7 mm
    ∅ (D2) 2.5mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    GTIN-13 / EAN 7890176002617
    UNSPSC Key 39121702
