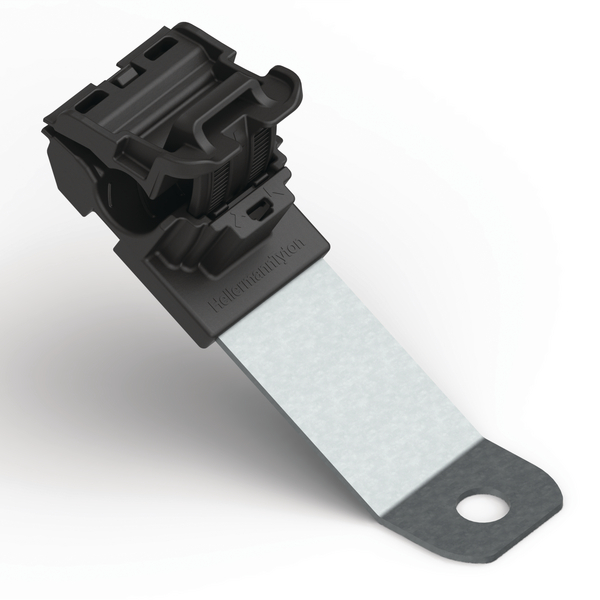

P-clamp long, Dmin=6.2mm, Dmax=13.7mm, ∅10.29 mm, 30°, black, 200pcs.
Art.-No. 151-01432
| RCA30LM10-PA66HIRHSUV/ST/ZN-BK
|
Details
- Ratchet P-Clamp A-Series for bundle diameters from 6.2 mm to 13.7 mm
- One-piece ratchet closure design allows for easy installation during pre- or final assembly
- Multiple configurations handle a wide range of diameters and applications, reducing part inventory
- Clamp interior is designed to guide and center bundle to reduce pinching
- Easy release feature allows for quick adjustments and maintenance
- Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
- Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
Request your individual offer now
Request quote
More products in this product group:
| Application | The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting |
| Key product features | for multiple routing, vibration absorbing, removable, releasable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Steel (ST), Zinc plated (ZN) |
| PART DESCRIPTION | RCA30LM10-PA66HIRHSUV/ST/ZN-BK |
| Pack Content | 200pcs. |
| Package Content packed in | box |
| Product Family | For bundle diameters from 6.2 mm to 13.7 mm, A-Series |
| Product Group | Ratchet P-Clamp |
| Type | RCA30LM10 |
| Variant | Long |
|
|
| Angle | 30 |
| Bundle Diameter max (metric) | 13.7mm |
| Bundle ∅ min. | 6.2mm |
| Fixing Hole Centres (F) | 2.85" |
| Fixing Hole Centres (F) | 72.4mm |
| Length (L) | 150.5mm |
| Length (L2) | 103.2mm |
| Max. Tie Width (G) | 13.2mm |
| Min.Tensile Strength | 445N |
| Strap Width max. (G) | 0.52" |
| Stud ∅ | M10 |
| Width (W) | 34.9mm |
| Width (W2) | 1.181" |
| Width (W2) | 30.0mm |
| for Hole ∅ (FH) | 10.29 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Plenum Rating | AH-2 |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| Stamping Material | Steel (ST) |
| UL Listed (US and Canada) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL-File Number | E64139 |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026539560 |
| Packaging 3 - Height (m) | 0.2159m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 200 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.052m³ |
| Packaging 3 - Weight (kg) | 9.502kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.245m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 3000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.195m³ |
| Packaging 4 - Weight (kg) | 163.53kg |
| Packaging 4 - Width (m) | 0.8m |
