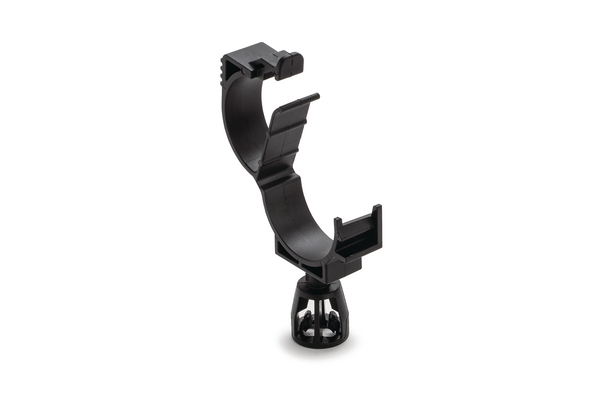

Cable clip for stud, ∅5.0 mm/6.0 mm, Dmin=20.0mm, Dmax=25.0mm, nom∅=22.5 mm, ∅M5/M6, black, 1000
Art.-No. 156-02901 | SMFLOC20-25-PA66HIRHSUV-BK |  Details

    • Attach before installing pipe or hose
    • Parts labelled 'I' are interlockable for more installation options
    • Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
    Colour Black (BK)
    Fixation Method Stud Mount
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION SMFLOC20-25-PA66HIRHSUV-BK
    Pack Content 1000
    Package Content packed in carton
    Type SMFLOC20-25
    Bundle Diameter Nom. (ND) 22.5 mm
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ min. 20.0mm
    Depth (D) 15.0mm
    Height (H) 56.0mm
    Height (H2) 39.3mm
    Length (L) 38.9mm
    Nominal ∅ 22.5mm
    Stud ∅ M5, M6, T5, T6
    for Hole ∅ (FH) 5.0 mm, 6.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant No
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    GTIN-13 / EAN 4031026636009
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.589m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0613m³
    Packaging 3 - Weight (kg) 6.0kg
    Packaging 3 - Width (m) 0.286m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    UNSPSC Key 39121717
