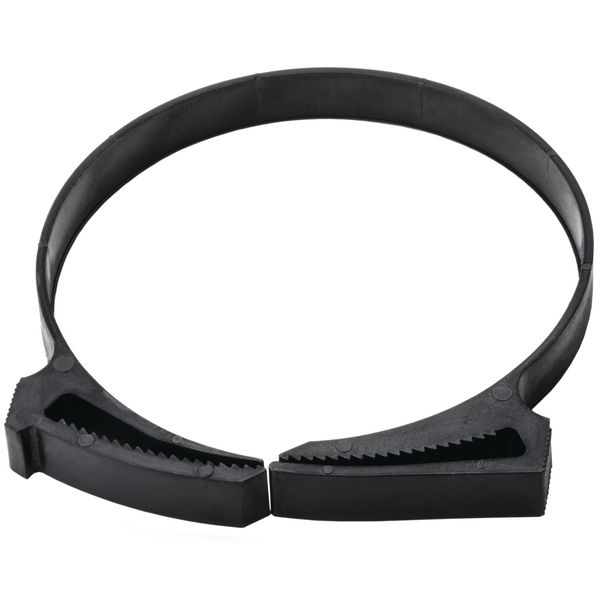

Plastic hose clamp, ∅74.0-83mm, black, 25pcs.
Art.-No. 190-00214 | SNP76-PA66GF13-BK |  Details

Designed for quick, ratcheted installation and can be released and reused.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour Black (BK)
    Fixation Method Plug-in mounting
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF13)
    PART DESCRIPTION SNP76-PA66GF13-BK
    Pack Content 25pcs.
    Package Content packed in bag
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Type SNP76
    Variant Closed
    Bundle Diameter max (metric) 83mm
    Bundle ∅ min. 74.0mm
    Wall (WT) 1.7mm
    Wall (WT) .67"
    Width (W) max. 2.902"
    Width (W) max. 73.71mm
    Width (W) min. 44.09mm
    Width (W) min. 1.736"
    Width (W2) 0.39"
    Width (W2) 9.91mm
    ∅ D max. 3.255"
    ∅ D max. 82.68mm
    ∅ D min. 73.61mm
    ∅ D min. 2.898"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026419909
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    UNSPSC Key 39121702
