Connector clip, black, 4000pcs.
Art.-No. 151-02078 | SRAH6.5CC-PA66HIRHSUV/TPE-BK Details

  • Fixing clip offers full 360° rotation
  • For routing of two different bundles
  • Simply clip on a wire or hose
  • Suitable for post-installation of bundles
  • Vibration resistant because of retaining collar
Show more

Request your individual offer now

Colour Black (BK)
Fixation Method arrowhead
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
PART DESCRIPTION SRAH6.5CC-PA66HIRHSUV/TPE-BK
Pack Content 4000pcs.
Package Content packed in bag
Product Family SRAHCC-Clips, rotatable 360°
Product Group Fixing Elemnts for Tubes and Harnesses
Type SRAH6.5CC
Type of connection USCAR11
Variant 6.1 - 6.9 mm

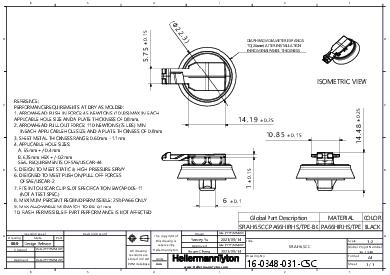

Height (H) 14.48mm
Length (L) 22.3mm
Panel Thickness 0.02 - 0.04"
Panel Thickness max. 0.6 - 1.1mm
Panel Thickness max. (imperial) 0.043"
Panel Thickness min. (imperial) 0.024"
Width (W) 22.3mm
for Hole ∅ (FH) 6.35 mm (hexagonal), 6.5 mm
for Panel Thickness min - max 0.6 - 1.1 mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Packaging 1 - Weight (kg) 0.003kg
Packaging 3 - Height (m) 0.20955m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0504
Packaging 3 - Weight (kg) 4.55kg
Packaging 3 - Width (m) 0.396875m
Packaging 4 - Qty 120000
UNSPSC Key 39121702
