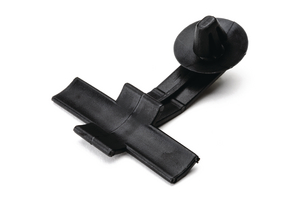

Bundling clip for hole (round), L=40.0mm, SO=31.0mm, grey, 500pcs.
Art.-No. 150-45398 | STAND OFF CLIP-PA46-GY |  Details

Designed for defined distance of bundles to the hole.

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Versions for oval holes feature anti-twist protection
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Originally designed for the automotive industry these clips offer simple and easy methods of securing cables or pipes, they have many applications within a wide range of industries.
    Colour Grey (GY)
    Fixation Method arrowhead
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION STAND OFF CLIP-PA46-GY
    Pack Content 500pcs.
    Package Content packed in bag
    Product Family SOC for distance routing 31.0 mm
    Product Group Bundling Clips with Arrowhead for Distance Routing
    Type STAND OFF CLIP
    Bundling Bar Length 40.0mm
    Disc ∅ 18.0mm
    Length (L) 40.0mm
    Length (L2) 31.0mm
    Offset Length 31.0mm
    Panel Thickness max. 0.4 - 1.6mm
    for Hole ∅ (FH) 6.5 - 6.8 mm
    for Panel Thickness min - max 0.4 - 1.6 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C, (+195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026209487
    Packaging 1 - Height (m) 0.35m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.084m³
    Packaging 1 - Weight (kg) 1.050001kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 11.32kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 156.84kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
