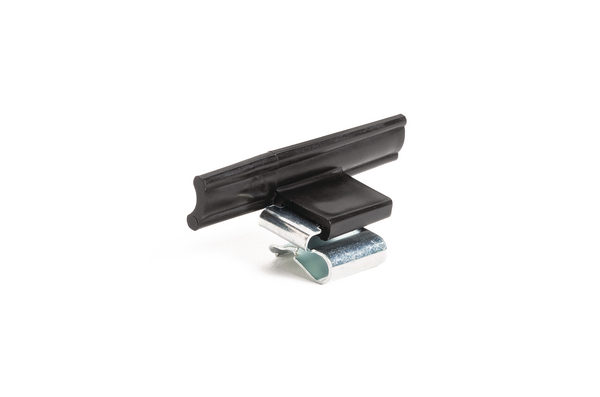

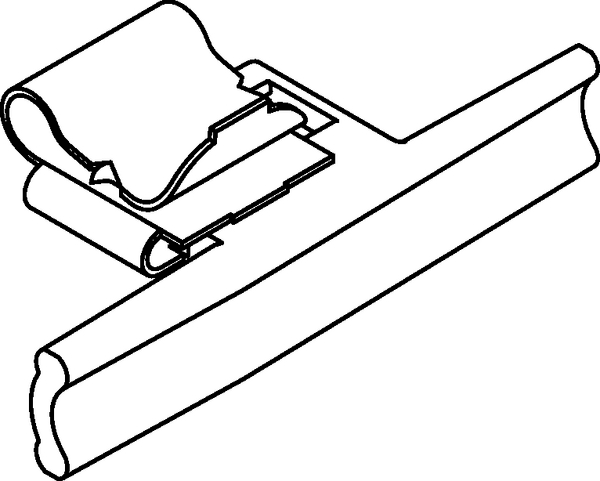

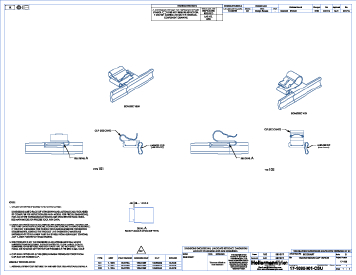

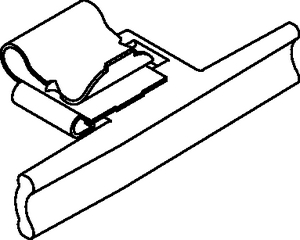

Bundling clip for edge, L=36.3mm, SO=6.0mm, black, 3000pcs.
Art.-No. 133-04383
| TEC97-PP/MET-BK
|
Details
| Bundle Diameter max (metric) | 6.1mm |
| Bundling Bar Length | 36.3mm |
| Diameter (D) | 4.0mm |
| Height (H) | 10.9mm |
| Length (L) | 14.3mm |
| Length (L2) | 45.1mm |
| Offset Length | 6.0mm |
| Panel Thickness | 0.06 - 0.11" |
| Panel Thickness max. | 1.4 - 2.8mm |
| Panel Thickness max. (imperial) | 0.11" |
| Panel Thickness min. (imperial) | 0.06" |
| Width (W) | 16mm |
| Width (W2) | 0.6" |
| Width (W2) | 15.3mm |
| for Panel Thickness min - max | 1.4 - 2.8 mm |
| ∅ D | 0.16" |
Download
|
|
|
| GTIN-13 / EAN | 4031026660554 |
| Packaging 1 - Height (m) | 0.145m |
| Packaging 1 - Length (m) | 0.55m |
| Packaging 1 - Qty | 3000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.02712m³ |
| Packaging 1 - Weight (kg) | 9.603001kg |
| Packaging 1 - Width (m) | 0.34m |

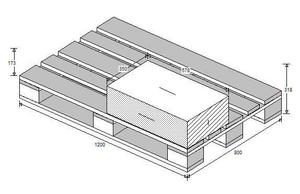

| Packaging 3 - Height (m) | 0.175m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0343m³ |
| Packaging 3 - Weight (kg) | 10.64kg |
| Packaging 3 - Width (m) | 0.35m |

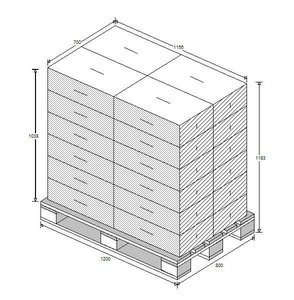

| Packaging 4 - Height (m) | 1.195m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 72000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.147m³ |
| Packaging 4 - Weight (kg) | 264.432kg |
| Packaging 4 - Width (m) | 0.8m |
