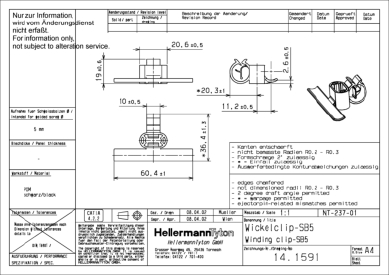

Bundling clip for stud, L=60.4mm, black, 500pcs.
Art.-No. 155-23701 | WICKELCLIP-SB5-POM-BK Details

Request your individual offer now

Colour Black (BK)
Fixation Method Weld Stud Fixing
Material Polyacetal (POM)
PART DESCRIPTION WICKELCLIP-SB5-POM-BK
Pack Content 500pcs.
Package Content packed in bag
Product Group Bundling Clips for Weld Studs, movable, with Harness Clip
Type WICKELCLIP-SB5
Attach to Ø 14.0 mm
Bundling Bar Length 60.4mm
Height (H) 19.0mm
Length (L) 60.0mm
Min Stud Length 20.6mm
Nominal ∅ 14.0mm
Stud ∅ 5.0 mm
Width (W) 36.4mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +90 °C, (+110 °C, 500 h)
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026216188
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.36m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0108
Packaging 1 - Weight (kg) 2.224635kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 14.12281kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 190.464kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121702
