Bundling clip for hole (oval), L=40.0mm, black, 1000pcs.
Art.-No. 155-16301
| WICKELCLIP-VDS-PA66HIRHS-BK
|
Details
- Especially for banding of cables and cable harnesses
- Fastened onto bundling bar with cable ties or adhesive tape
- Various base geometries for wide variety of metal gauges and bore diameters
- Versions for oval holes feature anti-twist protection
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
More products in this product group:
Application | These cable clips are particularly popular in the automotive industry, as cable harnesses can be easily installed in different areas of the vehicle. Due to their flat and lightweight design, they are an optimal solution for limited spaces. |
Anti rotation (Yes / No) | YES |
Colour | Black (BK) |
Fixation Method | Fir Tree for oval holes |
Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
PART DESCRIPTION | WICKELCLIP-VDS-PA66HIRHS-BK |
Pack Content | 1000pcs. |
Package Content packed in | bag |
Product Group | Bundling Clips with Fir Tree, for Oval Holes |
Type | WICKELCLIP-VDS |
Wings on clip base (Yes / No) | YES |

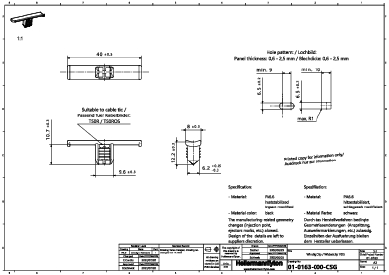

Bundling Bar Length | 1.57" |
Bundling Bar Length | 40.0mm |
Fixing Hole Shape | Oval |
Height (H) | 12.2mm |
Height (H2) | 10.7mm |
Length (L) | 40.0mm |
Length (L2) | 9.6mm |
Panel Thickness | 0.02 - 0.10" |
Panel Thickness max. | 0.6 - 2.5mm |
Panel Thickness max. (imperial) | 0.10" |
Panel Thickness min. (imperial) | 0.02" |
Width (W) | 8.0mm |
for Hole ∅ (FH) | 6.3 x 9.0 mm, 6.3 x 10.0 mm |
for Panel Thickness min - max | 0.6 - 2.5 mm |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Hazardous Goods | No |
Operating Temperature | -40 °C to +85 °C |
ROHS compliant | Yes |
Specifications |
![]() |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
|
|
GTIN-13 / EAN | 4031026215129 |
Packaging 1 - Height (m) | 0.045m |
Packaging 1 - Length (m) | 0.34m |
Packaging 1 - Qty | 1000 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.00428m³ |
Packaging 1 - Weight (kg) | 0.899kg |
Packaging 1 - Width (m) | 0.28m |
Packaging 3 - Height (m) | 0.204m |
Packaging 3 - Length (m) | 0.591m |
Packaging 3 - Qty | 10000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.048m³ |
Packaging 3 - Weight (kg) | 10.08993kg |
Packaging 3 - Width (m) | 0.398m |
Packaging 4 - Height (m) | 1.235m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 200000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.186m³ |
Packaging 4 - Weight (kg) | 222.8kg |
Packaging 4 - Width (m) | 0.8m |
