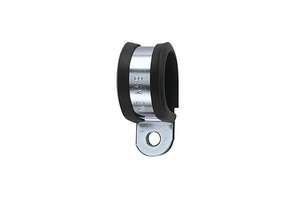

Plated Steel Fixing Clip with PVC Liner ø63mm
Art.-No. 166-50608 | AFCS63-GS/PVC-BK/ML |  Details

HelaGuard AFCS Fixing Clip, Galvanised Steel and PVC Liner.

    • Simple, secure fixing of metallic conduits
    • Liner prevents damage due to abrasion
    Add to watchlist

    Request your individual offer now

     Request quote

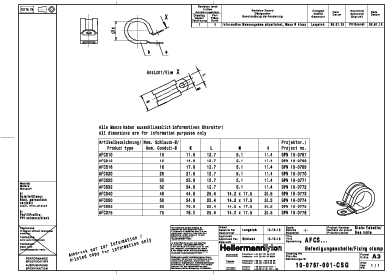

    Downloads CAD-Download
    Application The AFCS clip is used to secure metallic conduits.
    Colour Metal (ML), Black (BK)
    Fixation Method screw-hole
    Material Galvanised Steel (GS), Polyvinylchloride (PVC)
    PART DESCRIPTION AFCS63-GS/PVC-BK/ML
    Pack Content 1pc.
    Package Content packed in bag
    Product Family AFCS Fixing clip, plated steel and PVC liner
    Product Group HelaGuard accessories
    Type AFCS63
    Inside Ø (ID) 70.0mm
    Nominal ∅ 2.5"
    Nominal ∅ 63mm
    Width (W) 25.4mm
    Width (W2) 30.5mm
    for Hole ∅ (FH) 14.2 x 17.5 mm
    CE Certification Yes
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -20 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026310480
    Packaging 1 - Height (m) 0.01m
    Packaging 1 - Length (m) 0.155m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00025m³
    Packaging 1 - Weight (kg) 0.1kg
    Packaging 1 - Width (m) 0.16m
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
