BSHKLPFR340B-PET-BK
Art.-No. 170-03154 | BSHKLPFR340B-PET-BK |  Details

Braided sleeving material is self-extinguishing and complies with UL VW-1 standards.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)

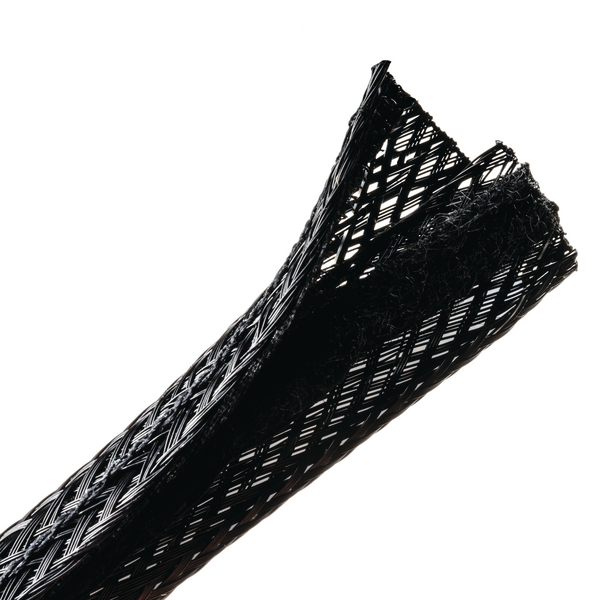

    Description Flame retardant expandable braided sleeving with hook & loop strip for wrapping around cable assemblies. Color matched hook & loop closure provides an easy on and off installation, as well as convenient access for harness break-outs.
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSHKLPFR340B-PET-BK
    Pack Content 30.48m
    Package Content packed in reel
    Type BSHKLPFR340B
    Bundle Diameter max (metric) 19.1mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 19.1mm
    Length (L) 30.48m
    Nominal ∅ 0.75"
    Nominal ∅ 19.1mm
    Wall (WT) 0.635mm
    Wall (WT) 0.025"
    ∅ D 0.75"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL 224 VW-1
    Halogen-free Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    ROHS compliant Yes
    Specifications
    Specifications MIL-STD 202, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E107055
    US Gov. Designation MIL-STD-202
    UV-Stabilised No
    GTIN-13 / EAN 4031026443980
    Packaging 1 - Weight (kg) 0.82kg
    Reel Length 100.0ft
    Reel Length 30.5m
    UNSPSC Key 39131602
