PET-General Purpose
Art.-No. 170-03078 | BSP343B-PET-OG |  Details

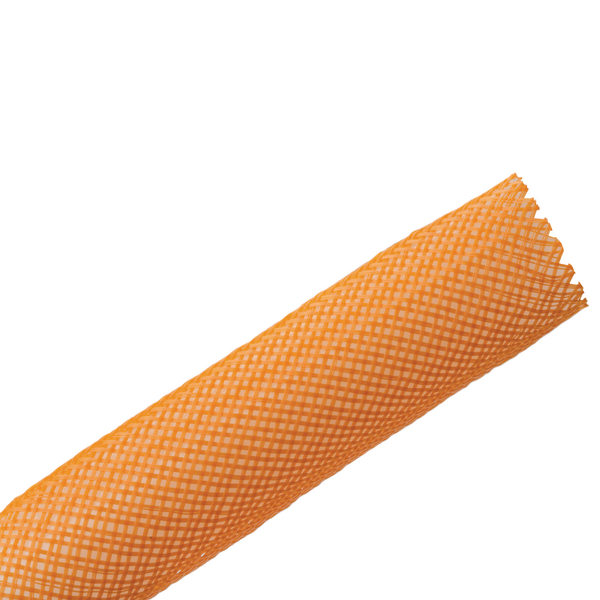

Expandable braided sleeving enlarges up to 150% of nominal diameter to accommodate irregular shapes.

    • Weave construction adjusts to twisting and flexing without creating wrinkles or bends
    • Durable construction offers excellent abrasion and cut-through resistance as well as inertness to most chemicals and fungus
    • Color options available to provide easy visual and safety identification of critical wiring components
    • Expands to 150% of nominal diameter for fast, easy installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Standard PET (polyethylene terepthalate) grade braided sleeving is a general purpose and economical material for indoor and outdoor applications. PET braided sleeving provides good resistance against cuts and abrasions, is resistant to chemical degradation and UV radiation. Fllexible, lightweight and durable, PET's construction allows it to expand over a variety of cable shapes and diameter sizes.
    Colour Orange (OG), High Voltage (HV)
    Description General purpose expandable braided sleeving provides flexible abrasion protection for wire bundles and hoses.
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSP343B-PET-OG
    Pack Content 76.20m
    Package Content packed in reel
    Product Group PET-General Purpose
    Type BSP343B
    Bundle Diameter max (metric) 31.8mm
    Bundle ∅ min. 12.7mm
    Diameter (D) 19.1mm
    Length (L) 76.2m
    Nominal ∅ 0.75"
    Nominal ∅ 19.1mm
    ∅ D 0.75"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0, FMVSS 302, FAR 25
    Halogen-free Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E147924
    UV-Stabilised No
    GTIN-13 / EAN 4031026440910
    Packaging 1 - Weight (kg) 1.36kg
    Reel Length 250.0ft
    Reel Length 76.2m
    UNSPSC Key 39131602
