PET-Flame Retardant
Art.-No. 170-03095 | BSPFR1120B-PET-BK Details

  • Treated polyester material contains a combustion inhibitor for use in applications where flame retardancy is required
  • Braided design allows sleeving to expand by 150% to accommodate variations in wire bundle and eases installation

Request your individual offer now

Colour Black (BK)

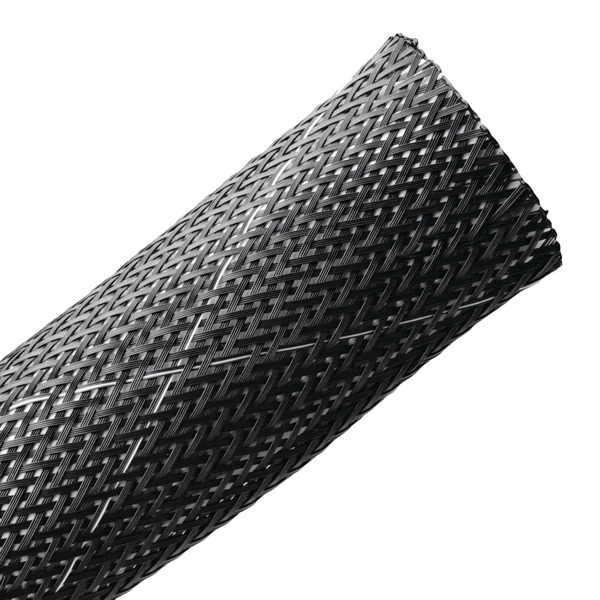

Description A flame retardant woven (threaded) polyester sleeving that is resistant to cuts and abrasion, and contains a combustion inhibitor allowing it to achieve a UL and CSA flame resistance rating of VW-1. Contains white tracer thread for easy identification.
Material Polyester (PET)
Open, post termination (Yes/No) No
PART DESCRIPTION BSPFR1120B-PET-BK
Pack Content 60.96m
Package Content packed in reel
Product Group PET-Flame Retardant
Type BSPFR1120B
Bundle Diameter max (metric) 54.0mm
Bundle ∅ min. 25.4mm
Diameter (D) 38.1mm
Length (L) 61.0m
Nominal ∅ 1.5"
Nominal ∅ 38.1mm
∅ D 1.5"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL 224 VW-1, Mil-202, FAR 25, FMVSS 302
Halogen-free Yes
Melting Point +250 °C
Operating Temperature -70 °C to +125 °C
ROHS compliant Yes
Specifications
Specifications UL 94 VW-1
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E147924
UV-Stabilised No
GTIN-13 / EAN 4031026442174
Packaging 1 - Weight (kg) 1.77kg
Reel Length 200.0ft
Reel Length 61.0m
UNSPSC Key 39131602
