Fray Resistant
Art.-No. 170-03035 | BSPSC140-PET-BK |  Details

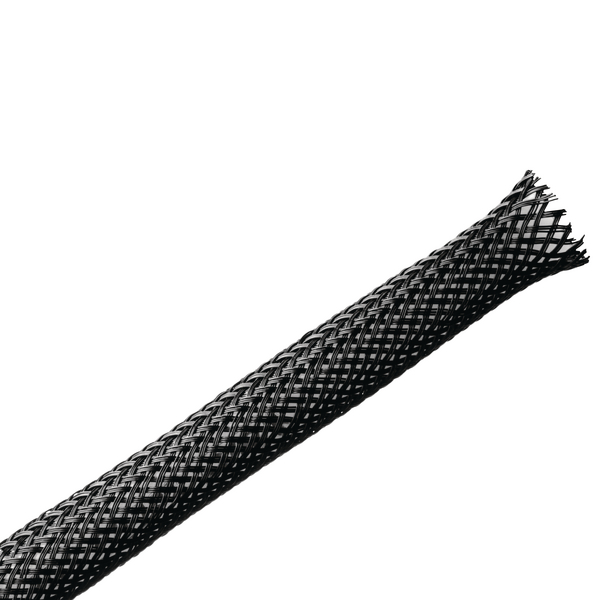

Expandable braided sleeving ends will not fray, even when cut with scissors.

    • Cuts with scissors without fraying ends enables field installations without need for hot knife
    • Material construction offers excellent abrasion and cut-through protection as well as inertness to common chemicals and fungus
    • Expands to 150% of easy installation and reduced assembly time requirements
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Description A versatile and economical general purpose braided sleeving that resists fraying when cut with ordinary scissors.
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSPSC140-PET-BK
    Pack Content 30.48m
    Package Content packed in reel
    Product Group Fray Resistant
    Type BSPSC140
    Bundle Diameter max (metric) 11.1mm
    Bundle ∅ min. 4.0mm
    Diameter (D) 6.4mm
    Length (L) 30.48m
    Nominal ∅ 0.25"
    Nominal ∅ 6.4mm
    ∅ D 0.25"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E147924
    UV-Stabilised No
    GTIN-13 / EAN 4031026434339
    Packaging 1 - Weight (kg) 0.21kg
    Reel Length 100.0ft
    Reel Length 30.5m
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
