BSPSW140B-PET-BK
Art.-No. 170-03125 | BSPSW140B-PET-BK Details

  • Split wrap design installs quickly, saving assembly time and future accessibility without disassembly
  • Unique construction retains shape and rigidity throughout unrolling
  • Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations

Request your individual offer now

Colour Black (BK)

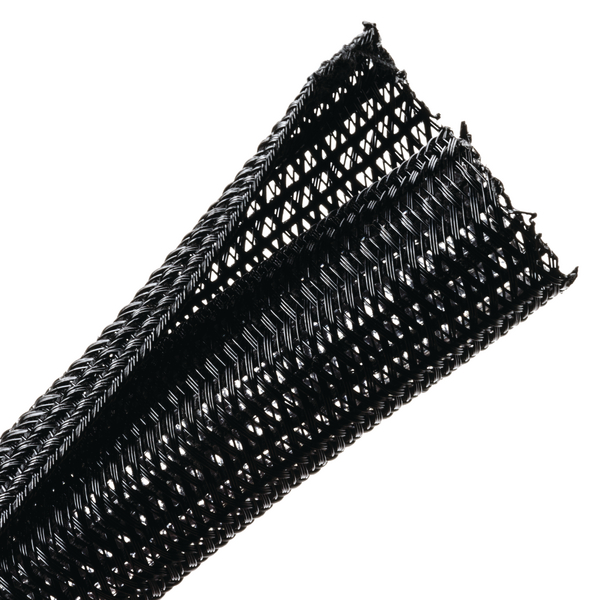

Description A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.
Material Polyester (PET)
Open, post termination (Yes/No) No
PART DESCRIPTION BSPSW140B-PET-BK
Pack Content 60.96m
Package Content packed in box
Type BSPSW140B
Bundle Diameter max (metric) 6.4mm
Bundle ∅ min. 2.54mm
Diameter (D) 6.4mm
Length (L) 61.0m
Nominal ∅ 0.25"
Nominal ∅ 6.4mm
Wall (WT) 0.64mm
Wall (WT) 0.025"
∅ D 0.25"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogen-free Yes
Melting Point +250 °C
Operating Temperature -70 °C to +125 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E147924
UV-Stabilised Yes
GTIN-13 / EAN 4031026443607
Packaging 1 - Weight (kg) 0.54kg
Reel Length 200.0ft
Reel Length 61.0m
UNSPSC Key 39131602
