Fray Resistant & Flame Retardant

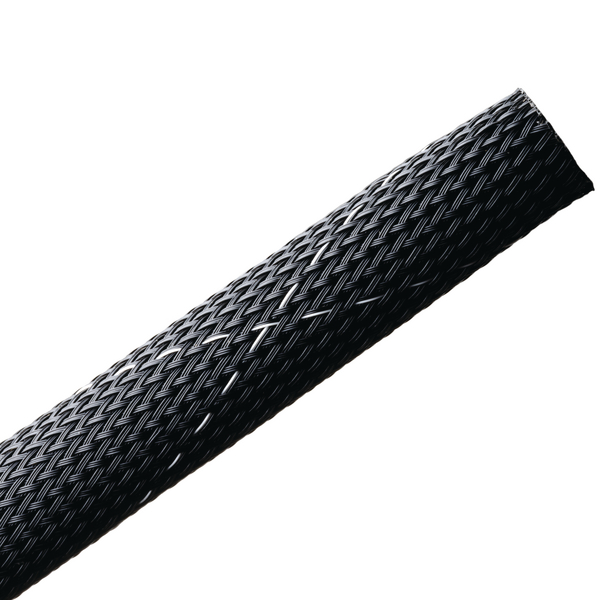

Art.-No. 170-03119 | BSSCFR340B-PET-BK Details

  • Increased braid density coverage provides higher level of abrasion resistance without losing flexibility
  • Treated yarns extinguish quickly and reduces potential flame spread to surrounding components
  • Cuts with ordinary scissors without fraying ends

Request your individual offer now

Colour Black (BK)
Description Treated polyester yarns that can be cut with sharp scissors and provides flame retardant properties. Well suited for situations where access to a hot knife is either impractical or impossible. Contains white tracer thread for easy identification.
Material Polyester (PET)
Open, post termination (Yes/No) No
PART DESCRIPTION BSSCFR340B-PET-BK
Pack Content 76.20m
Package Content packed in reel
Product Group Fray Resistant & Flame Retardant
Type BSSCFR340B
Bundle Diameter max (metric) 25.4mm
Bundle ∅ min. 15.9mm
Diameter (D) 25.4mm
Length (L) 76.2m
Nominal ∅ 0.75"
Nominal ∅ 19.1mm
∅ D 1.0"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL VW-1, Mil-202
Halogen-free Yes
Limited Fire Hazard Yes
Melting Point +250 °C
Operating Temperature -70 °C to +125 °C
ROHS compliant Yes
Specifications
Specifications ASTM 1354, ASTM E 162, ASTM E 662, NFPA130: 2017
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E147924
UV-Stabilised No
GTIN-13 / EAN 4031026443522
Packaging 1 - Weight (kg) 1.3kg
Reel Length 250.0ft
Reel Length 76.2m
UNSPSC Key 39131602
