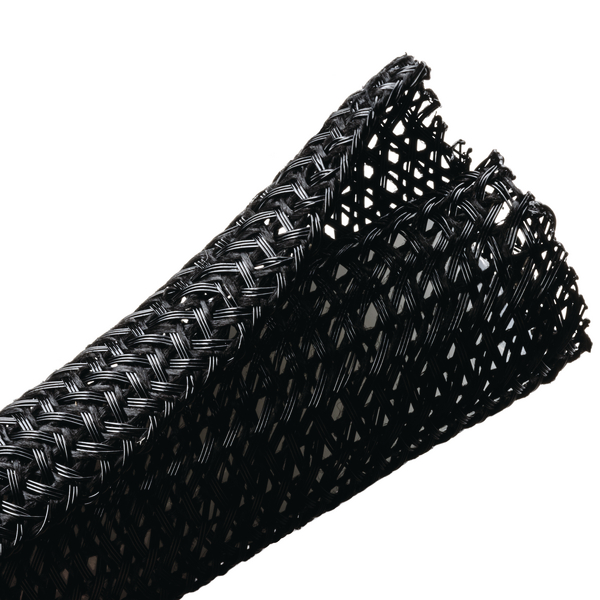

PET Split Wrap
Art.-No. 170-03144 | BSSWFR100B-PET-BK |  Details

Lateral split allows the braided sleeving to open up to accommodate a variety of bundling requirements.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSSWFR100B-PET-BK
    Pack Content 30.48m
    Package Content packed in box
    Product Group PET Split Wrap
    Type BSSWFR100B
    Bundle Diameter max (metric) 25.4mm
    Bundle ∅ min. 25.4mm
    Diameter (D) 25.4mm
    Length (L) 30.48m
    Nominal ∅ 1"
    Nominal ∅ 25.4mm
    Wall (WT) 0.97mm
    Wall (WT) 0.038"
    ∅ D 1.0"
    Abrasion Resistance High
    CE Certification No
    CSA Certified No
    Flammability UL 224 VW-1, FAR 25
    Halogen-free Yes
    Limited Fire Hazard Yes
    Melting Point +230 °C
    Operating Temperature -70 °C to +125 °C
    ROHS compliant Yes
    Specifications
    Specifications ASTM 1354, ASTM E 162, ASTM E 662
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E107055
    UV-Stabilised No
    GTIN-13 / EAN 4031026443799
    Packaging 1 - Weight (kg) 0.91kg
    Reel Length 100.0ft
    Reel Length 30.5m
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
