19/12/2024

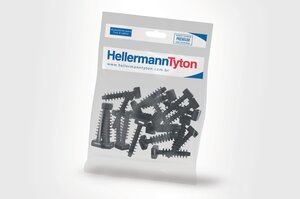

Cable tie mount, Wmax=9.0mm, ∅7.0 - 8.0 mm, black, 20pcs.
Art.-No. 151-02112 | LOK01-PA66-BK |  Details

LOK01, LOK01B, LOK01S fixing bases.

    • LOK01 – LOK05 usable with any cable ties up to 9 mm wide
    • Suitable for a wide range of materials, including concrete, brick, block and wood
    • Installed by knocking into 7 mm or 8 mm diameter hole
    • LOK01B is designed for soft brickwork and 6 mm holes
    • Elongated head of LOK05 for setting bundles at a distance from brickwork
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The LOK mounts, in conjunction with a cable tie, can be used either indoors or outdoors for a diverse range of applications from holding climbing plants, to securing cables running between buildings.
    Colour Black (BK)
    Fixation Method with Fir Tree (Mounts)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION LOK01-PA66-BK
    Pack Content 20pcs.
    Package Content packed in bag
    Product Family LOK-Series
    Product Group Fixing base
    Type LOK01
    Diameter (D) 9.2mm
    Length (L) 44.0mm
    Length (L2) 6.5mm
    Length (L3) 2.5mm
    Max. Tie Width (G) 9.0mm
    Width (W) 12.0mm
    for Hole ∅ (FH) 7.0 - 8.0 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 7890176085122
    UNSPSC Key 39121717
