Gel, Silicone (SI) green/transparent, 1000ml
Art.-No. 435-00752
| Religel Plus 1.000-SI-CL/GN
|
Details
- Timesaving due to fast curing time
- Stable up to 200 °C
- Visual control of the homogenous mixture indicated by green-coloured component B
- Multiple use possible, mixing ratio 1:1
- Excellent flow and insulating properties
- Excellent moisture and chemical resistance
- Soft elastic, vibration absorbing and removable residue-free
Request your individual offer now
Request quote
More products in this product group:

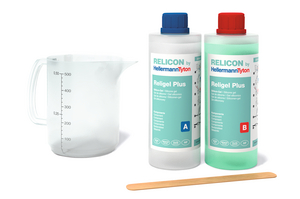

| Application | RELICON Religel Plus is a green-transparent, elastic 2-component silicone gel. It is packed in practical bottles or canisters including measuring cup and mixing stick. It is particularly suited to fill junction boxes for low voltage applications. Electrical insulation in low-voltage applications, Encapsulation of cables and wires in junction boxes, Building and household installations, Belowground, submerged. |
| Colour | Green (GN), Transparent (CL) |
| Density | 0.97 g/cm³, 20 °C (DIN EN ISO 2811-2) |
| Key product features | vibration absorbing |
| Material | Silicone (SI) |
| PART DESCRIPTION | Religel Plus 1.000-SI-CL/GN |
| Pack Content | 1000ml |
| Package Content packed in | bottle |
| Pot Life | 5 min. 23°C |
| Product Family | Religel Plus |
| Product Group | RELICON Religel Plus |
| Type | Religel Plus 1.000 |
| Viscosity | 1000 mPa*s, 23 °C (EN ISO 2555) |
| Dielectric Strength | 25kV/mm |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -60 °C to +200 °C |
| ROHS compliant | Yes |
| Shelf Life | Unlimited |
| Specifications |
|
| Specifications | IEC 60529, Edition 2.2, 2013-08 |
| Thermal Conductivity (max.) | 0.15W/mK |
| Thermal Conductivity (min.) | 0.15W/mK |
| Vibrations absorbing | Yes |
Download
| GTIN-13 / EAN | 4031026599663 |
| Packaging 1 - Height (m) | 0.23m |
| Packaging 1 - Length (m) | 0.18m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00393m³ |
| Packaging 1 - Weight (kg) | 1.257001kg |
| Packaging 1 - Width (m) | 0.095m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 126 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 211.262kg |
| Packaging 4 - Width (m) | 0.8m |
| Spray content | 970g |
| Storage Temperature | +4 °C to +40 °C |
Religel Plus 10.000
435-00753
Religel Plus 500
435-00756

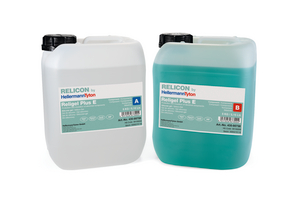

Religel Plus E
