Heat shrinkable tubing 2:1 (50.8/25.4 mm), self extinguishing, black, 30 m reel
Art.-No. 300-73120
| TCN20-50.8/25.4-PO-X-BK
|
Details
- Thin walled general purpose polyolefin tubing
- Highly flame-retardant, UL224 VW-1 , CSA
- Fast shrinking
- Low shrink temperature
More products in this product group:

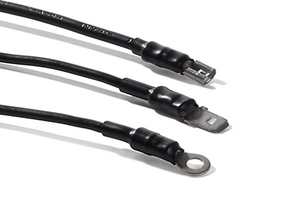

| Application | TCN20 is suitable for a wide range of applications like electrical insulations, mechanical protection and cable bundling. |
| Colour | Black (BK) |
| Elongation At Heat Aging | 350% |
| Heat Aging Test | 168h/160°C |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Tensile Strength At Heat Aging | 14MPa |
| PART DESCRIPTION | TCN20-50.8/25.4-PO-X-BK |
| Pack Content | 30m |
| Package Content packed in | reel |
| Printable | No |
| Product Family | TCN20 - thin wall, up to +125°C, self-extinguishing |
| Product Group | 2:1 Heat shrink tubing - on reel & customized cut lengths |
| Shrink Ratio | 2:1 |
| Size | 2" |
| Type | TCN20-50.8/25.4 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Download
| CSA Certified | No |
| Dielectric Strength | 20kV/mm |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 400% |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Insulation Class | E (VDE 0530) |
| Min. Shrink Temperature - °C | +100 °C |
| Operating Temperature | -55 °C to +125 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications | ANSI/UL 224, CSA, DIN 75200 (09/1980) |
| Specifications |
|
| Tensile Strength | 14MPa |
| UL OCD link | Link Link |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E143529 |
| Volume Resistance | 10¹⁴ Ω cm |
|
|
|
| GTIN-13 / EAN | 4031026282824 |
| Packaging 1 - Height (m) | 0.093m |
| Packaging 1 - Length (m) | 0.385m |
| Packaging 1 - Qty | 30 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.01378m³ |
| Packaging 1 - Weight (kg) | 3.781kg |
| Packaging 1 - Width (m) | 0.385m |
| Packaging 3 - Height (m) | 0.42m |
| Packaging 3 - Length (m) | 0.405m |
| Packaging 3 - Qty | 120 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0689m³ |
| Packaging 3 - Weight (kg) | 15.622kg |
| Packaging 3 - Width (m) | 0.405m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 480 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 83.49kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 100.0ft |
| Reel Length | 30.0m |
