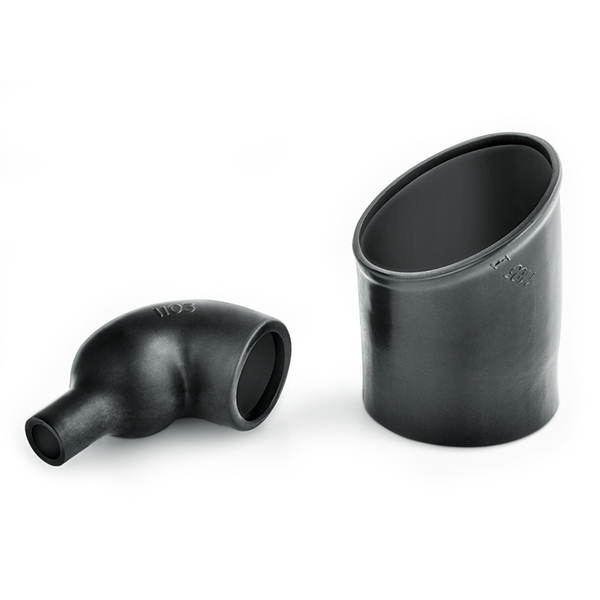

Right-Angle Shapes, MIL style
Art.-No. 411-03019 | 1103-4-B7-PO-X-BK | Details

1108-4 supplied / fully recovered.

Used in conjunction with a circular grooved adaptor for strain relief

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Right-Angle Shapes, MIL style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1103-4-B7-PO-X-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, MIL style
Type	1103-4-B7
Variant	For plug

Product Dimensions


Angle	90
Flexibility	semi rigid
HW ± 20 %	1.8mm
JW ± 30 %	1.8mm
M nom.	22.9mm
P ± 10 %	43.2mm
R ± 10 %	35.6mm
S nom.	12.7mm
T ± 20 %	1mm
V max.	3.3mm
∅H max. b	22.4mm
∅H min. a	36mm
∅J max. b	8.4mm
∅J min. a	36mm

Downloads

RoHS datasheet

Download

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Min. Shrink Temperature - °C	+135 °C
Nato number	5970-99-661-3333, 5970-01-034-7135
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Specifications
Tensile Strength	13MPa
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	5022660407857
Packaging 1 - Height (m)	0.040m
Packaging 1 - Length (m)	0.160m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00077m³
Packaging 1 - Weight (kg)	0.007kg
Packaging 1 - Width (m)	0.120m

More Information

UNSPSC Key

39121721

Accessories

CHG900 391-90010
Cordless Heat Gun - Gas powered
