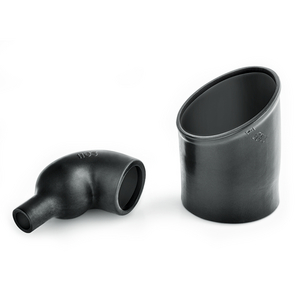

Right-Angle Shape VG-Style with Rib for Plugs black, PO-X, up to 3:1
Art.-No. 411-54480 | 1154-4-G-PO-X-BK | Details

1152-4-G recovered onto a connector.

Used in conjunction with a circular grooved adaptor
Provides strain relief and an environmental seal

Add to watchlist

Request your individual offer now

Request quote

Downloads CAD-Download

More products in this product group:

Right-Angle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1154-4-G-PO-X-BK
Pack Content	1pc.
Package Content packed in	pcs.
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, VG style
Shrink Ratio	up to 3:1
Type	1154-4-G
Variant	For plug

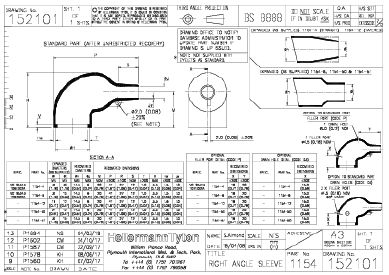

Product Dimensions


Angle	90
Flexibility	semi rigid
HW ± 20 %	1.5mm
JW ± 20 %	0.8mm
JW ± 30 %	0.8mm
M nom.	19.0mm
P ± 10 %	41.0mm
P ± 20%	41.0mm
R ± 10 %	27.0mm
S nom.	12.0mm
T ± 10 %	1.0mm
T ± 20 %	1.0mm
V max.	3.3mm
∅H max. b	14.5mm
∅H min. a	30.0mm
∅J max. b	6.0mm
∅J min. a	30.0mm

Downloads

Specifications

Designation as per VG-Norm	VG 95343 T06 E 002 A
Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant (Article 4 - 2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Min. Shrink Temperature - °C	+135 °C
Nato number	5970-12-194-2488
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Specifications	DAN341, VG 95343-6
Tensile Strength	15MPa

Logistics and Packaging


GTIN-13 / EAN	5022660635106
Packaging 1 - Height (m)	0.035m
Packaging 1 - Length (m)	0.13m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00046m³
Packaging 1 - Weight (kg)	0.006001kg
Packaging 1 - Width (m)	0.1m

More Information

UNSPSC Key

39121721
