Right-Angle Shapes, VG style
Art.-No. 411-56054 | 1156-52-L-FPMX-BK | Details

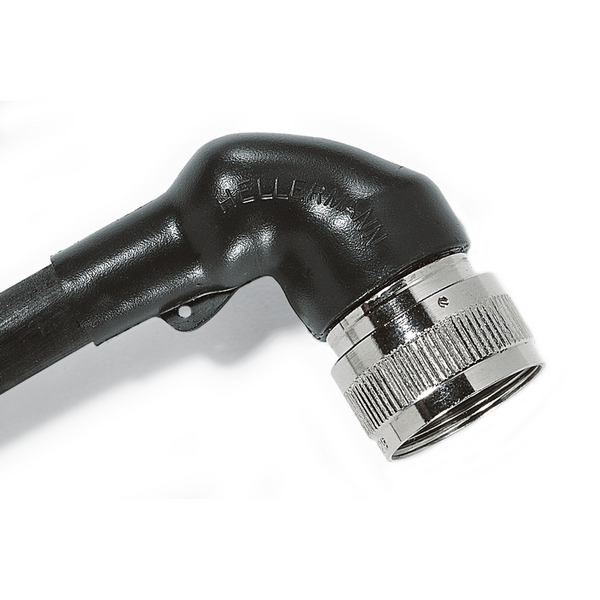

1152-4-G recovered onto a connector.

Used in conjunction with a circular grooved adaptor
Provides strain relief and an environmental seal

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Right-Angle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, CHG900
Colour	Black (BK)
Material	Fluoropolymer, cross-linked (FPMX)
PART DESCRIPTION	1156-52-L-FPMX-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, VG style
Type	1156-52-L
Variant	For plug

Product Dimensions


Angle	90
Flexibility	Flexible
HW ± 20 %	1.8mm
JW ± 30 %	1mm
M nom.	26.0mm
R ± 10 %	38mm
S nom.	15mm
T ± 20 %	1mm
V max.	3.3mm
∅H max. b	22.5mm
∅H min. a	34mm
∅J max. b	8.5mm
∅J min. a	17mm

Downloads

Specifications

Dielectric Strength	9kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Min. Shrink Temperature - °C	+135 °C
Operating Temperature	-55 °C to +200 °C
ROHS compliant	Yes
Specifications
Tensile Strength	13MPa
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	5022660691478
Packaging 1 - Height (m)	0.040m
Packaging 1 - Length (m)	0.120m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00048m³
Packaging 1 - Weight (kg)	0.014001kg
Packaging 1 - Width (m)	0.100m

More Information

UNSPSC Key

39121721
