Right-Angle Shapes, VG style
Art.-No. 411-58018 | 1158-5-L-FPMX-BK | Details

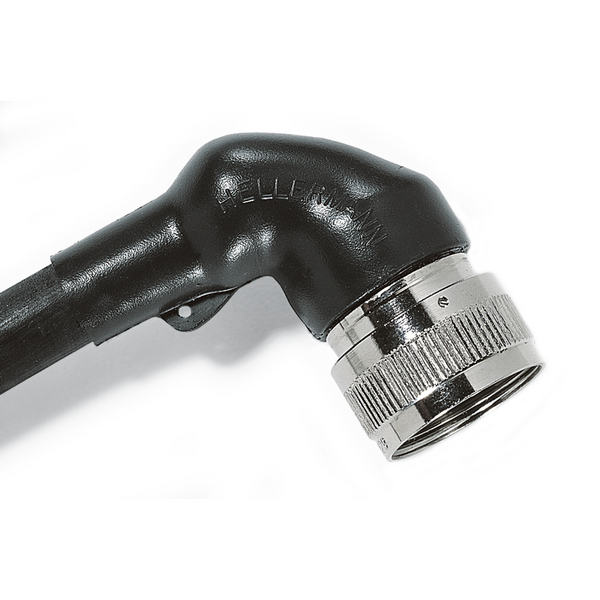

1152-4-G recovered onto a connector.

Used in conjunction with a circular grooved adaptor
Provides strain relief and an environmental seal

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Right-Angle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Fluoroelastomer, cross-linked (FPMX)
PART DESCRIPTION	1158-5-L-FPMX-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 1100 Series, with rib
Product Group	Right-Angle Shapes, VG style
Type	1158-5-L
Variant	For plug

Product Dimensions


Angle	90
Flexibility	Flexible
HW ± 20 %	3.3mm
JW ± 30 %	1.5mm
M nom.	35mm
P ± 20%	101mm
R ± 10 %	54mm
S nom.	30mm
T ± 20 %	1.7mm
V max.	3.3mm
∅H max. b	35mm
∅H min. a	62mm
∅J max. b	16mm
∅J min. a	32mm

Downloads

RoHS datasheet

Download

Specifications

Dielectric Strength	9kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Min. Shrink Temperature - °C	+135 °C
Operating Temperature	-55 °C to +200 °C
ROHS compliant	Yes
Specifications
Tensile Strength	13MPa
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	5022660650413
Packaging 1 - Height (m)	0.070m
Packaging 1 - Length (m)	0.200m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00182m³
Packaging 1 - Weight (kg)	0.066001kg
Packaging 1 - Width (m)	0.130m

More Information

UNSPSC Key

39121721
