T-Shapes, VG style/MIL style
Art.-No. 412-01001 | 1201-1-B7-PO-X-BK |  Details

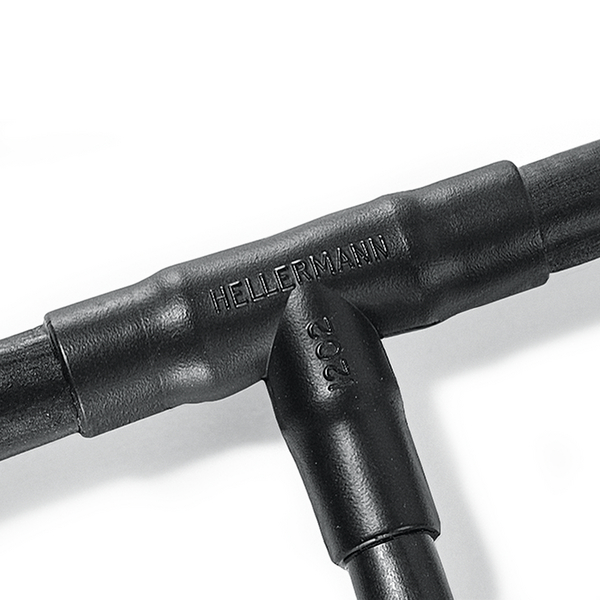

1202-1-G recovered onto a cable harness.

    • 4-way outlet shape
    • Cable sealing, strain relief and mechanical protection
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1201-1-B7-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1200 Series
    Product Group T-Shapes, VG style/MIL style
    Type 1201-1-B7
    Variant For 2-core cables
    Flexibility semi rigid
    HW ± 20 % 1.5mm
    HW ± 30 % 1.5mm
    JW ± 20 % 1.5mm
    JW ± 30 % 1.5mm
    KW ± 20 % 1mm
    M nom. 11mm
    P ± 10 % 47.5mm
    R ± 10 % 23.6mm
    S ± 10 % 23.6mm
    ∅H max. b 8.9mm
    ∅H min. a 17.7mm
    ∅J max. b 8.9mm
    ∅J min. a 17.7mm
    ∅K max. b 5.1mm
    ∅K min. a 10.1mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 5022660418044
    Packaging 1 - Height (m) 0.040m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00064m³
    Packaging 1 - Weight (kg) 0.003001kg
    Packaging 1 - Width (m) 0.100m
    UNSPSC Key 39121721
