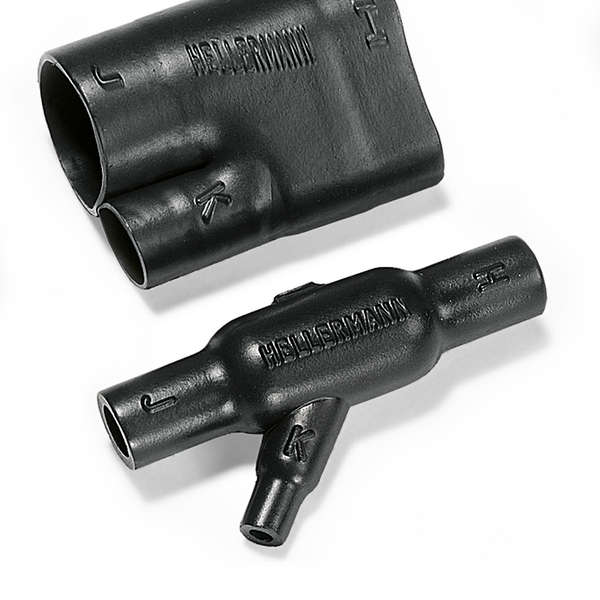

Angled T-Shapes, VG style
Art.-No. 413-07014 | 1307-50-L-FPMX-BK |  Details

1303-1-G supplied / fully recovered.

    • Strain relief, sealing and mechanical protection on cable harnesses
    • Branching part 30° & 45° Y-joint
    • Mechanical strain relief for cable harnesses
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Fluoropolymer, cross-linked (FPMX)
    PART DESCRIPTION 1307-50-L-FPMX-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 1300 Series, 30° & 45° angle
    Product Group Angled T-Shapes, VG style
    Type 1307-50-L
    Variant For 2-core cables
    Angle 45
    Flexibility Flexible
    HW ± 30 % 2.5mm
    JW ± 30 % 1.5mm
    JW/KW ± 30% 1.5mm
    KW ± 20 % 1.5mm
    P ± 10 % 90mm
    R nom. 42mm
    S nom. 43mm
    ∅H max. b 12.5mm
    ∅H min. a 25mm
    ∅J/K max. b 6mm
    ∅J/K min. a 12mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-01-449-9809
    Operating Temperature -55 °C to +200 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 13MPa
    UV-Stabilised No
    GTIN-13 / EAN 5022660552267
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.150m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0003m³
    Packaging 1 - Weight (kg) 0.022001kg
    Packaging 1 - Width (m) 0.100m
    UNSPSC Key 39121721
