Angle Shapes
Art.-No. 418-18001 | 1818-4-G-PO-X-BK | Details

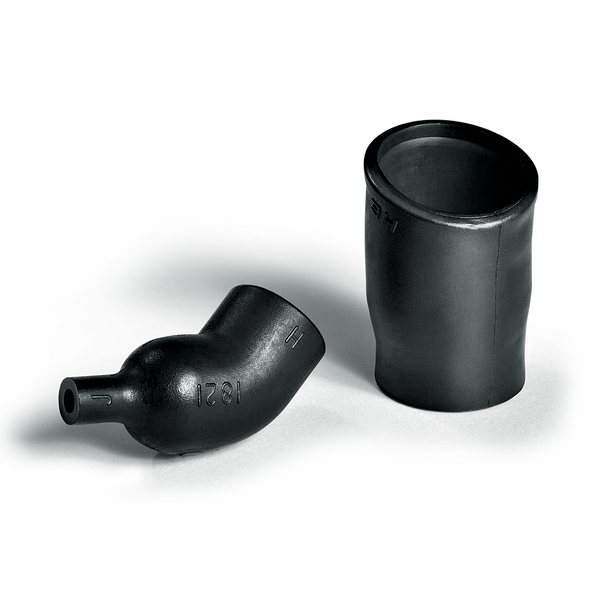

1821-42 supplied / fully recovered.

Provides strain relief and mechanical protection for harness systems
Use in conjunction with a circular grooved adaptor

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1818-4-G-PO-X-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
Product Group	Angle Shapes
Type	1818-4-G

Product Dimensions


Flexibility	semi rigid
HW ± 20 %	2mm
JO ± 10 %	38mm
JW ± 20 %	1mm
P ± 10 %	84mm
R ± 10 %	25mm
T ± 10 %	3mm
V ± 10 %	1.5mm
∅H max. b	38.7mm
∅H min. a	55mm
∅J max. b	17.1mm
∅J min. a	38mm

Downloads

RoHS datasheet

Download

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Min. Shrink Temperature - °C	+135 °C
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Specifications
Tensile Strength	15MPa
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

5022660441677

More Information

UNSPSC Key

39121721
