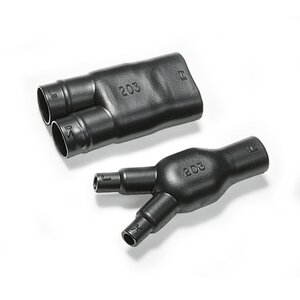

2-Way Outlet Shape VG-Style black, PO-X
Art.-No. 402-03184 | 203-1-GW24-PO-X-BK | Details

203-1 supplied / fully recovered.

Mechanical tension relief in cable harnesses

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-Way Outlet Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	203-1-GW24-PO-X-BK
Pack Content	1pc.
Package Content packed in	pcs.
Product Family	Helashrink 200 Series
Product Group	2-Way Outlet Shapes, VG style
Type	203-1-GW24
Variant	For 2-core cables

Product Dimensions


HW ± 20 %	2.5mm
HW ± 30 %	2.5mm
JW nom.	1.5mm
JW/KW ± 30%	1.5mm
P ± 10 %	80mm
P ±10%=overall length	80mm
R nom.	38mm
R ± 10 %	43mm
S nom.	43mm
∅H max. b	12mm
∅H min. a	27mm
∅J max. b	6mm
∅J min. a	13mm
∅J/K max. b	6mm
∅J/K min. a	13mm
∅K max. b	6mm
∅K min. a	13mm

Downloads

RoHS datasheet

Download

Specifications

Adhesive	W24
Designation as per VG-Norm	VG 95343 T19 C 002 A
Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant (Article 4 - 2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Nato number	5970-12-308-5074
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Specifications
Specifications	JN1000T, VG 95343-19:2016-03

Logistics and Packaging


GTIN-13 / EAN	5022660635847
Packaging 1 - Height (m)	0.02m
Packaging 1 - Length (m)	0.13m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00026m³
Packaging 1 - Weight (kg)	0.014001kg
Packaging 1 - Width (m)	0.1m

More Information

UNSPSC Key

39121721

Accessories

CHG900 391-90010
Cordless Heat Gun - Gas powered
