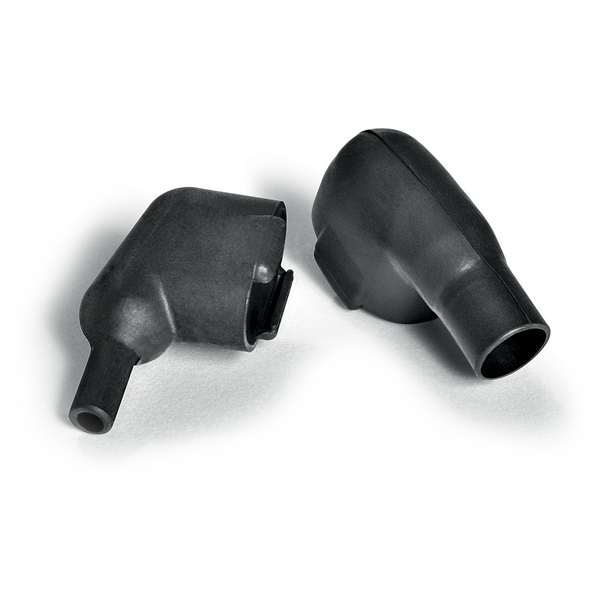

Connector Cover for Min-D Series
Art.-No. 421-02001 | 2102-1-B7-PO-X-BK |  Details

2101-1 supplied / fully recovered.

    • Provides strain relief and mechanical protection for Min-D series connectors
    • Unique design allows perfect 90° orientation on installation
    • Can be supplied with or without lips in a range of material and adhesive combinations to suit most applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 2102-1-B7-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 2100 Series, with 90° entry
    Product Group Connector Cover for Min-D Series
    Type 2102-1-B7
    Angle 90
    Flexibility semi rigid
    P nom. 30.7mm
    P ± 10 % 30.7mm
    R nom. 24.6mm
    R ± 10 % 24.6mm
    S ± 10 % 18.5mm
    V ± 10 % 15mm
    W ± 20 % 1mm
    ∅H max. b 28.2mm
    ∅H min. a 28.1mm
    ∅J max. b 10.7mm
    ∅J min. a 10.6mm
    ∅K max. b 5.3mm
    ∅K min. a 10.1mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-222-4165, 5935-00-911-5930
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 13MPa
    UV-Stabilised No
    GTIN-13 / EAN 5022660444920
    UNSPSC Key 39121721
