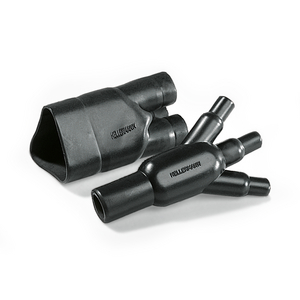

3-Way Outlet Shapes, VG style
Art.-No. 403-04011 | 304-1-GW8-PO-X-BK |  Details

304-1-G supplied / fully recovered.

    • Cable strain relief and mechanical protection at harness transition points
    • All outlets clearly marked to aid orientation during installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 304-1-GW8-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 300 Series
    Product Group 3-Way Outlet Shapes, VG style
    Shrink Ratio up to 3:1
    Type 304-1-GW8
    Variant For 3-core cables
    Flexibility semi rigid

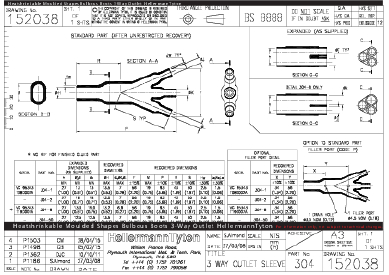

    HW ± 20 % 2.5mm
    JW ± 30 % 1.5mm
    P ± 10 % 93mm
    R ± 10 % 50mm
    S ± 10 % 50mm
    T ± 10 % 43mm
    W ± 20 % 1.5mm
    ∅H max. b 13.5mm
    ∅H min. a 27mm
    ∅J max. b 7mm
    ∅J min. a 13mm
    ∅J/K/L max. b 7mm
    ∅J/K/L min. a 13mm
    ∅K max. b 7mm
    ∅K min. a 13mm
    Adhesive W8
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660451942
    UNSPSC Key 39121721
