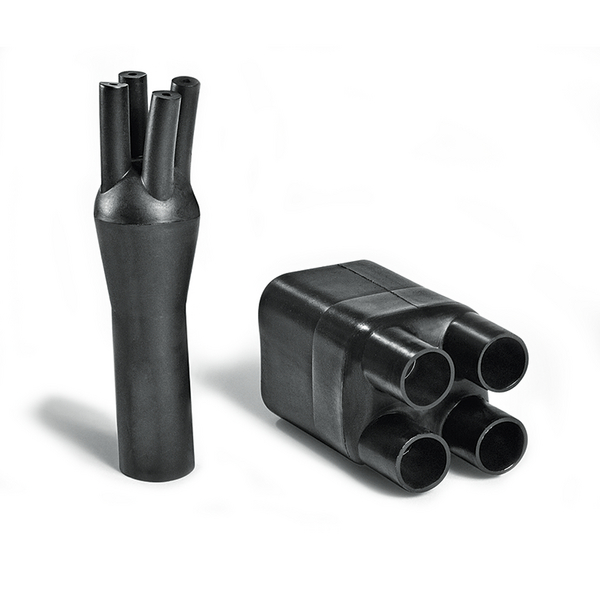

4-Way Outlet Shapes, Breakout Boots
Art.-No. 404-43015 | 443-1-H-PO-X-BK Details

  • Easy, time-saving insulation of cable branch point where it splits into single wires
  • Made of tough, cross-linked, Polyolefin
  • Adhesive is applied to relieve mechanical tension in cable harnesses

Request your individual offer now

Application Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 443-1-H-PO-X-BK
Pack Content 1pc.
Package Content packed in bag
Product Family Helashrink 400 Series, in line, low voltage
Product Group 4-Way Outlet Shapes, Breakout Boots
Shrink Ratio up to 3:1
Type 443-1-H
Variant For 4-core cables
Flexibility Flexible
HW ± 20 % 3mm
JW ± 20 % 2.5mm
P ± 10 % 132mm
R ± 10 % 26mm
S nom. 22mm
S ± 10 % 22mm
∅H max. b 12mm
∅H min. a 35mm
∅J max. b 3mm
∅J min. a 15mm
Dielectric Strength 15kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Halogen-free Yes
Min. Shrink Temperature - °C +135 °C
Operating Temperature -55 °C to +105 °C
ROHS compliant Yes
Specifications
Tensile Strength 10MPa
UV-Stabilised No
GTIN-13 / EAN 5022660463945
UNSPSC Key 39121721
