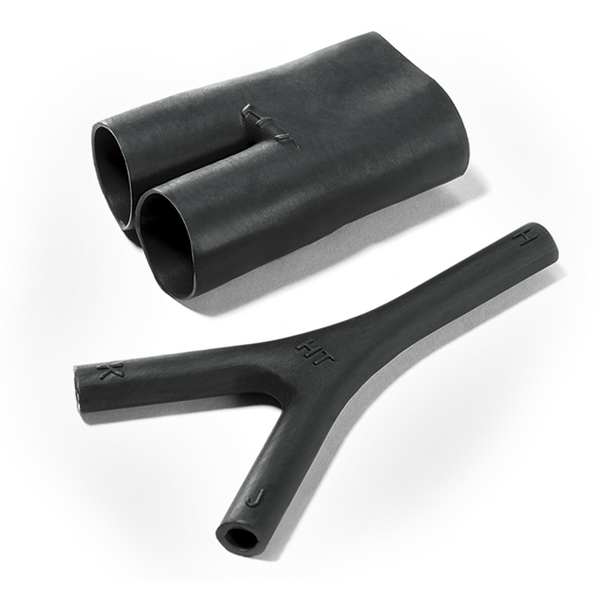

Low Profile Transition Boots
Art.-No. 422-50121 | 492H413-8-PEEX-BK | Details

492H412-415 Series supplied / fully recovered.

For cable harness breakouts or transitions
Strain relief, sealing and mechanical protection

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Low Profile Transition Boots >

Base Data

Application	Military and general performance harnessing.
Colour	Black (BK)
Material	Polyester elastomer cross-linked (PEEX)
PART DESCRIPTION	492H413-8-PEEX-BK
Pack Content	5pcs.
Package Content packed in	bag
Product Family	Helashrink 492H Series, 1 to 2 cables
Product Group	Low Profile Transition Boots
Shrink Ratio	3:1
Type	492H413-8
Variant	For 2-core cables

Product Dimensions


Flexibility	Flexible
HO/JO/KO ± 15%	41.1mm
P nom.	62.9mm
P ± 10 %	121.4mm
P/R/S nom.	62.9mm
W nom.	1.3mm
∅H max. b	11.4mm
∅H min. a	34.2mm
∅J max. b	11.4mm
∅J min. a	22.8mm
∅J/K max. b	11.4mm
∅J/K min. a	22.8mm
∅K max. b	11.4mm
∅K min. a	22.8mm

Downloads

Specifications

Dielectric Strength	20kV/mm
Dielectric Strength test method	IEC 243
Flammability	ASTM D635
Min. Shrink Temperature - °C	+100 °C
Operating Temperature	-55 °C to +120 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

5022660669491

More Information

UNSPSC Key

39121721
