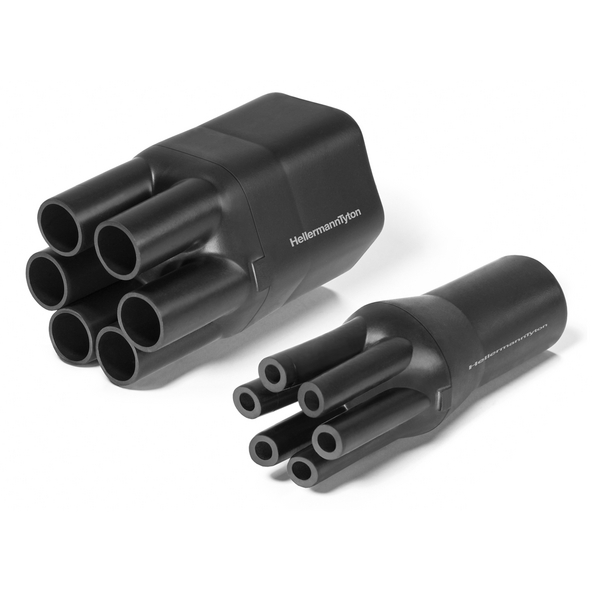

6-Way Outlet Shapes, Breakout Boots
Art.-No. 406-09003 | 609-1-G-PO-X-BK |  Details

600 Series supplied / fully recovered.

    • Cable breakout boots for insulating and sealing cable crotch or conduit system
    • Excellent resistance to abrasion and weathering
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakout to be used for both interior and exterior applications. they offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2,3,4,5 and 6 conductor cables.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 609-1-G-PO-X-BK
    Pack Content 1pc.
    Package Content packed in bag
    Product Family Helashrink 600 Series, in line, low voltage
    Product Group 6-Way Outlet Shapes, Breakout Boots
    Shrink Ratio up to 3:1
    Type 609-1-G
    Variant For plug
    Flexibility semi rigid
    HW ± 20 % 2.5mm
    JW ± 20 % 1.5mm
    P ± 10 % 75.0mm
    R ± 10 % 20.0mm
    S nom. 25.0mm
    ∅H max. b 16.0mm
    ∅H min. a 30.0mm
    ∅J max. b 4.0mm
    ∅J min. a 8.2mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-426-5084
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 15MPa
    UV-Stabilised No
    GTIN-13 / EAN 5022660468421
    UNSPSC Key 39121721
