FSU20-M20-C90-NPB/PA6-ML
Art.-No. 166-90514 | FSU20-M20-C90-NPB/PA6-ML | Details

Add to watchlist

Request your individual offer now

Request quote

Base Data

Colour	Metal (ML)
Material	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
PART DESCRIPTION	FSU20-M20-C90-NPB/PA6-ML
Pack Content	10pcs.
Package Content packed in	pack
Thread type	metric
Type	FSU20-M20-C90
Variant	90°-elbow

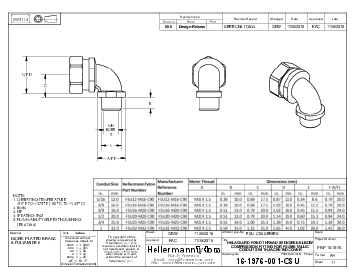

Product Dimensions

Bore Diameter (Imperial)	0.6"
Bore Diameter (metric)	15.3
Height (H)	29.0mm
Length (L)	42.0mm
Nominal ∅	0.5"
Nominal ∅	20.0mm
Thread Length (TL)	13mm
Thread Length (TL) (Imperial)	0.51"
Thread Size	M20
Thread Size (Imperial)	1-1/2 "
Wrenching Flat Size (Imperial)	1.65"
Wrenching Flat Size (Metric)	42.0mm

Downloads

Specifications

CSA Certified	No
Halogen-free	Yes
IP-Rating	IP65
Operating Temperature	-50 °C to +135 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

4031026552965

More Information

UNSPSC Key

39131707
