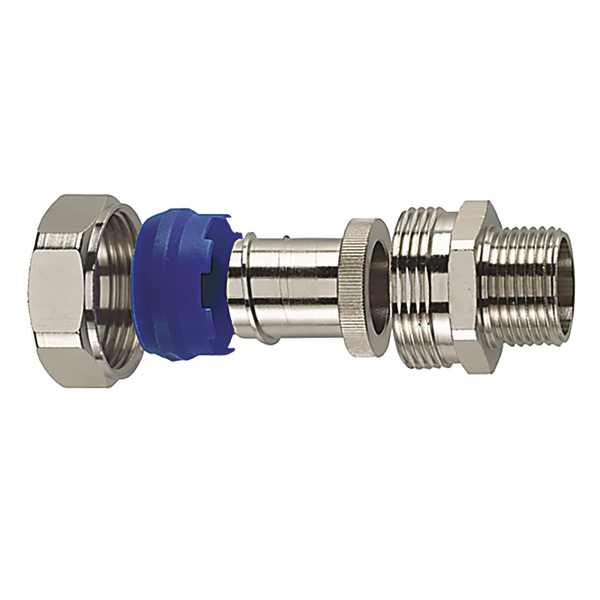

LPC050-S-050-NPB-ML
Art.-No. 166-90362 | LPC050-S-050-NPB-ML |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB)
    PART DESCRIPTION LPC050-S-050-NPB-ML
    Pack Content 10pcs.
    Package Content packed in pack
    Thread type NPT
    Type LPC050-S-050
    Variant Straight
    Bore Diameter (Imperial) 0.57"
    Bore Diameter (metric) 14.5
    Height (H) 29.0mm
    Length (L) 33.5mm
    Length (L2) 21.5mm
    Nominal ∅ 0.5"
    Nominal ∅ 20mm
    Thread Length (TL) 12.0mm
    Thread Length (TL) (Imperial) 0.47"
    Thread Size (Imperial) 1/2 "
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    GTIN-13 / EAN 4031026515984
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
