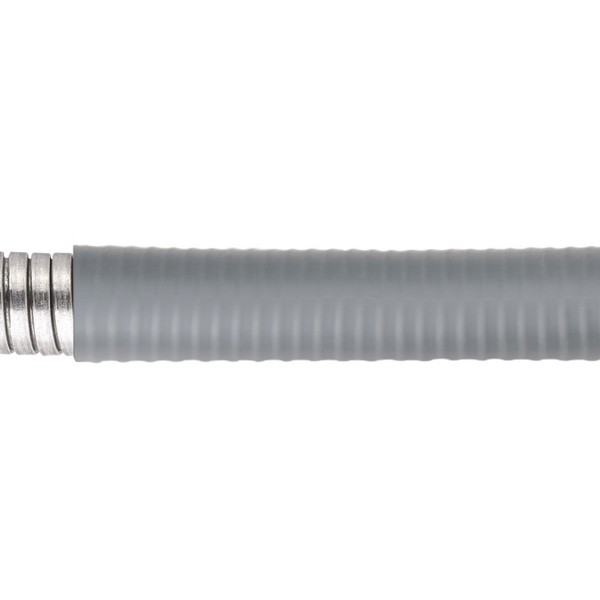

LTS0388-25M-GS/PVC-GY
Art.-No. 166-90387 | LTS0388-25M-GS/PVC-GY |  Details

UV resistant and suitable for outdoor use.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Grey (GY)
    Material Galvanised Steel (GS), Polyvinylchloride (PVC)
    PART DESCRIPTION LTS0388-25M-GS/PVC-GY
    Pack Content 25.0m
    Package Content packed in reel
    Type LTS0388-25M
    Bending Radius min. (R) 45mm
    Diameter (D) 12.6mm
    Length (L) 25.0m
    Nominal ∅ 0.38"
    Nominal ∅ 16.0mm
    Outside Ø (OD) 17.8mm
    Outside ∅ (OD) 0.70"
    Weight 311g/m
    ∅ D 0.49"
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -20 °C to +105 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026520599
    Packaging 1 - Weight (kg) 7.78kg
    Reel Length 82.0ft
    Reel Length 25.0m
    UNSPSC Key 39131706
