23/12/2024

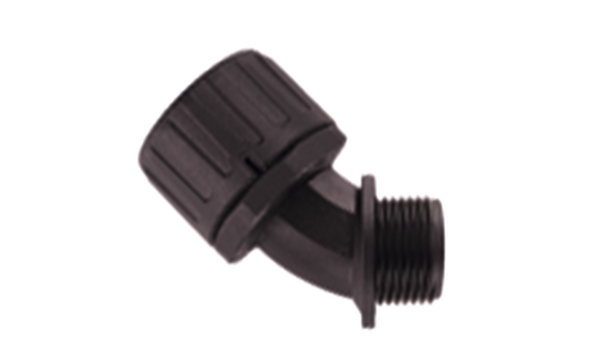

HG125-45-1500-PA66-BK
Art.-No. 166-90774 | HG125-45-1500-PA66-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION HG125-45-1500-PA66-BK
    Pack Content 2pcs.
    Package Content packed in pack
    Thread type NPT
    Type HG125-45-1500
    Variant 45°-elbow
    Bore Diameter (Imperial) 1.54"
    Bore Diameter (metric) 39.0
    Length (L) 98.0mm
    Nominal ∅ 1.25"
    Nominal ∅ 42mm
    Outside Ø (OD) 63.0mm
    Outside ∅ (OD) 2.48"
    Thread Length (TL) 16mm
    Thread Length (TL) (Imperial) 0.63"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    IP-Rating IP66
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E229161
    UV-Stabilised No
    GTIN-13 / EAN 4031026572789
    UNSPSC Key 39131601
