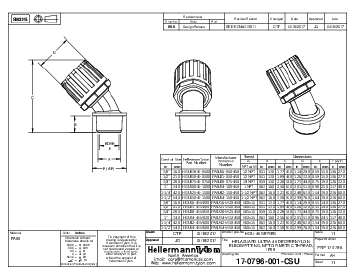

HGU038-45-0500-PA66-BK
Art.-No. 166-90790 | HGU038-45-0500-PA66-BK |  Details

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION HGU038-45-0500-PA66-BK
    Pack Content 1pc.
    Package Content packed in pack
    Swivel Thread (Y/N) No
    Thread type NPT
    Type HGU038-45-0500
    Variant 45°-elbow
    Bore Diameter (Imperial) 0.55"
    Bore Diameter (metric) 15.0
    Length (L) 58.0mm
    Nominal ∅ 0.38"
    Nominal ∅ 16mm
    Outside Ø (OD) 29.0mm
    Outside ∅ (OD) 1.14"
    Thread Length (TL) 13mm
    Thread Length (TL) (Imperial) 0.51"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E504250
    UV-Stabilised No
    GTIN-13 / EAN 4031026588056
    UNSPSC Key 39131601
