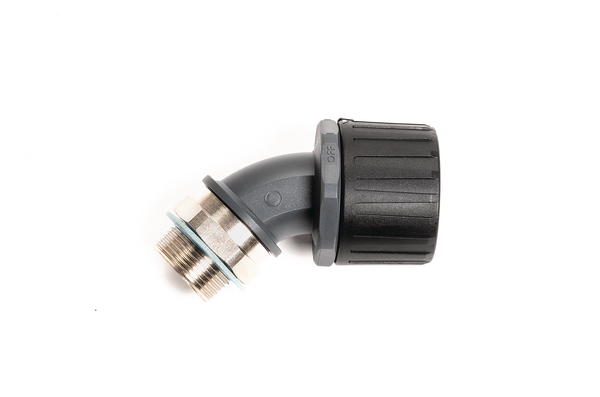

HGU34-45M-M32B-NPB/PA66-BK
Art.-No. 166-90822 | HGU34-45M-M32B-NPB/PA66-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Nickel Plated Brass (NPB), Polyamide 6.6 (PA66)
    PART DESCRIPTION HGU34-45M-M32B-NPB/PA66-BK
    Pack Content 10pcs.
    Package Content packed in pack
    Swivel Thread (Y/N) Yes
    Thread type metric
    Type HGU34-45M-M32B
    Variant 45°-elbow
    Bore Diameter (Imperial) 0.96"
    Bore Diameter (metric) 24.5
    Length (L) 98mm
    Nominal ∅ 1"
    Nominal ∅ 34mm
    Outside Ø (OD) 51.0mm
    Outside ∅ (OD) 2.01"
    Thread Length (TL) 13mm
    Thread Length (TL) (Imperial) 0.51"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 4031026588377
    UNSPSC Key 39131708
