22/12/2024

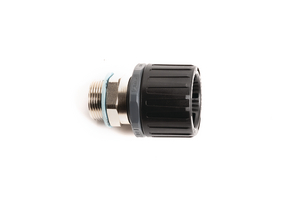

HGU54-SM-M50B-NPB/PA66-BK
Art.-No. 166-90924 | HGU54-SM-M50B-NPB/PA66-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Nickel Plated Brass (NPB), Polyamide 6.6 (PA66)
    PART DESCRIPTION HGU54-SM-M50B-NPB/PA66-BK
    Pack Content 1pcs.
    Package Content packed in pack
    Type HGU54-SM-M50B
    Variant Straight
    Bore Diameter (Imperial) 1.65"
    Bore Diameter (metric) 42.0
    Length (L) 75mm
    Nominal ∅ 2.13"
    Nominal ∅ 54mm
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UV-Stabilised No
    GTIN-13 / EAN 4031026615554
    UNSPSC Key 39131708
