22/12/2024

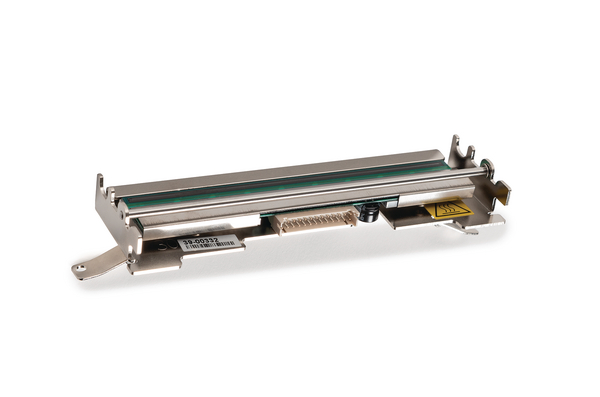

Spare part for TT230, 1pc. (PRH TT230SM)
Art.-No. 556-00232 | PRH TT230SM-MET-SR |  Details

TT230 Printer Series Replacement Print Head

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Silver (SR)
    Material Metal (MET)
    PART DESCRIPTION PRH TT230SM-MET-SR
    Pack Content 1pc.
    Package Content packed in EA
    Print resolution DPI 300dpi
    Type PRH TT230SM
    Height (H) 12.7mm
    Label Width Max (imperial) 4.25"
    Label Width Min (imperial) 1.0"
    Length (L) 127mm
    Print Material Height Min (metric) 6.35mm
    Print Material Width Max (metric) 107.95mm
    Print Material Width Min (metric) 25.4mm
    Width (W) 31.75mm
    CE Certification Yes
    CSA Certified No
    Operating Temperature +4 °C to +40 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E178707
    UV-Stabilised No
    Dimensions W x H x D 31.75 mm x 12.7 mm x
    GTIN-13 / EAN 4031026408347
    Packaging 1 - Weight (kg) 0.13607kg
    Storage Temperature -34 °C to +71 °C
    UNSPSC Key 39131505
    Thermal transfer printer TT431 Thermal transfer printer TT431

    Thermal transfer printer for industrial-grade printing

    In addition to user-friendly entry-level printing models, such as the new TT431, HellermannTyton offers different thermal transfer print systems for a wide variety of needs – including suitable consumables and easy-to-use labelling software.
