Heat Shrinkable Tubing SA47

Heat Shrinkable Tubing SA47

Our heat shrinkable products SA47, SA47-LA, SA47-HT offer:

  • Flexible, standard wall polyolefin tubing
  • Excellent tensile strength and strain relief
  • Excellent moisture protection
  • Environmental sealing of complex parts

Offers excellent protection against moisture and corrosion and offers best solutions for Automotive and Industrial markets, eliminating the risk of corrosion around cable splices and terminations.


SA47 - Standard Wall 4:1 shrink ratio

SA47 is a semi-rigid halogen free polyolefin tubing with a thick inner liner of hot melt adhesive.  It has excellent tensile strength and strain relief.  The adhesive liner provides excellent moisture protection.  Ideal for electrical connections and splices in automobiles.  Tubing is clear and hot melt adhesive is black.

Features & Benefits:

  • Flexible, standard wall polyolefin heat shrink tubing
  • Excellent tensile strength and strain relief
  • Provides excellent moisture protection
  • Tubing is clear and hot melt adhesive is black
  • Provides an environmental sealing of complex parts
  • Halogen free

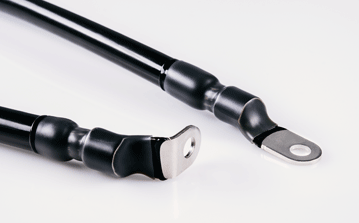

SA47 LA

SA47-LA is a semi-rigid halogen free polyolefin tubing with an inner liner of hot melt adhesive.  It has excellent tensile strength and strain relief.  The adhesive liner provides excellent moisture protection.  Ideal for electrical connections and splices in automobiles.  Tubing is clear and hot melt adhesive is black.
SA47-LA is specifically designed with less adhesive for cable connections.

Features & Benefits:

  • Flexible, standard wall polyolefin heat shrink tubing
  • Excellent tensile strength and strain relief
  • Provides excellent moisture protection
  • Tubing is clear and hot melt adhesive is black
  • Provides an environmental sealing of complex parts
  • Halogen free

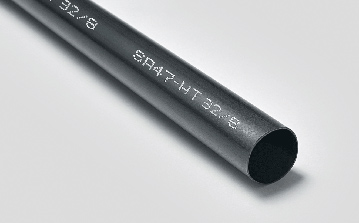

SA47-HT

SA47-HT is a semi-rigid flame retardant polyolefin tubing with a thick inner liner of hot melt adhesive.  The tubing has excellent tensile strength and strain relief.  The adhesive liner provides excellent moisture protection.  Ideal for the electrical connections and splices in automobiles.  Suitable for high temperature applications up to 150 degrees C.  Tubing is black, and hot melt adhesive is black.

Features & Benefits:

  • Flexible, standard wall polyolefin heat shrink tubing
  • Excellent tensile strength and strain relife
  • Provides excellent moisture protection
  • Tubing and hot melt adhesive is black
  • Provides an environmental sealing of complex parts
  • For high temperature applications up to 150 deg C.
  • Flame retardant
  • Shrink ratio 4:1
